  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

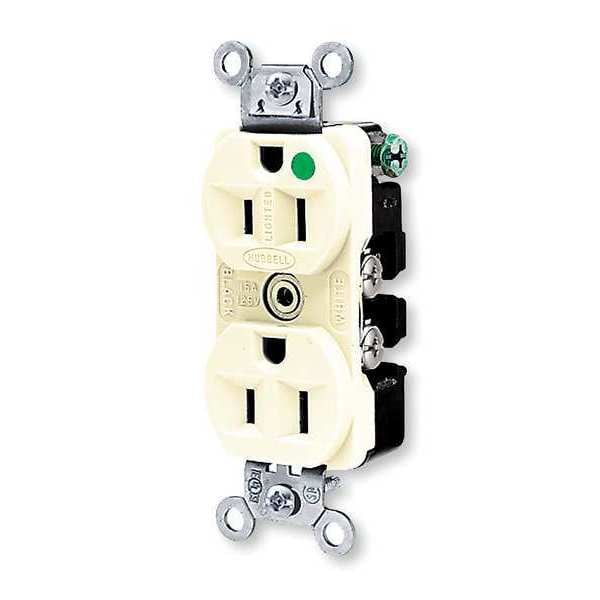

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200ILI - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200ILI

  • Zoro # G2959171

product price:  $51.57
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8200ILI
Zoro #
G2959171
UPC #
783585016450
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.33 in x 1.05 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.7 in
Length
3.28 in
Height
1.05 in
Width
1.33 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
C22.2, CSA Certified, Federal Specification W-C-596, NEMA WD-6, No. 42 File 285, UL Listed to UL 498 File No. E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Wiring Method
Back, Side
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
No
Weather Resistant
No
Color
Ivory
Material
Polycarbonate
Special Features
Illuminated
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
HP
1/2 hp
Outlet Type
Duplex
NEMA Configuration
5-15
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Hardware Material
Screw Mounting
Wattage
1875 W
Carton Quantity
10
Maximum Horsepower
0.5
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Type
Receptacle
Application
Extra Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Hospital Grade
Number Of Wires
3-Wire
Nema Rating
5-15R
Brand
Hubbell Wiring Device-Kellems
Style
Finder Groove Face
Connectivity
Back and Side Wired Screw Terminals
Amperage
15 A
Dielectric Strength
Withstands 2,000V minimum
Grade
Hospital Grade Fed. Spec.
Horsepower Rating
1/2 hp
Connection Orientation
Straight
NEMA Enclosure Rating
1
Key Resistance Properties
Standard Resistance
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Polycarbonate
GFCI
No
For Location
Indoor
Wire Connection Types
Screw Terminals
Number of Poles & Wires
2 Pole / 3 Wire
Additional Electrical Protection
Standard Protection
Includes Mounting Hardware
Yes
Polarized
Yes
UL 94 Flammability Rating
V-0
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Nickel-Plated Brass
Cover Type
No Cover
AFCI
No
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Device Grade
Heavy Duty Spec Grade
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Ivory
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94V-2
Poles and Wires
2 Pole, 3 Wire
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet rated as hospital grade; suitable for use in demanding environments. It features a compact, impact-resistant polycarbonate housing and is rated for indoor use in dry locations. The receptacle supports both back and side wiring with screw terminals, accommodating #14 to #10 AWG copper wire. Meets UL requirements for hospital grade devices, it includes an illuminated face with two LEDs and a four-point grounding system.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125 VAC

  • NEMA Configuration: 5-15R (2-pole, 3-wire)

  • Wiring Method: Back and side wired screw terminals; accepts #14–#10 AWG copper wire

  • Material: Impact-resistant polycarbonate housing; nickel-plated brass contacts

  • Grounding: Four-point grounding system

  • Illumination: Entire face illuminated by two LEDs for visibility

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Certifications/Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
