  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

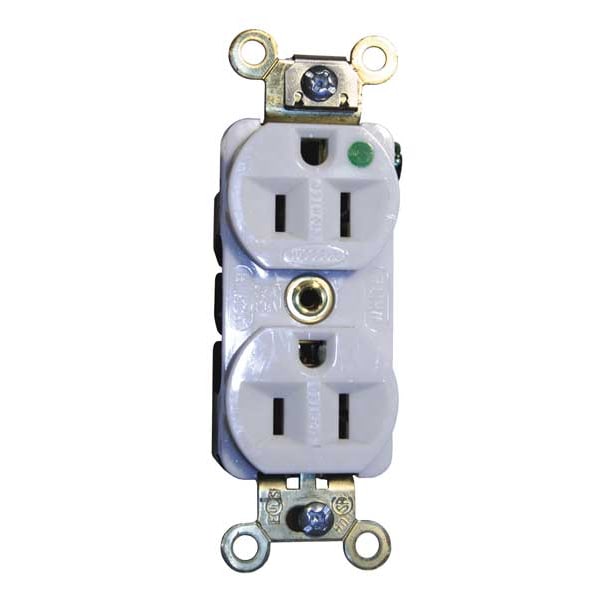

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200ILW - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200ILW

  • Zoro # G1175142

product price:  $51.59
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200ILW
Zoro #
G1175142
UPC #
783585016474
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.33 in x 1.05 in
Width
1.33 in
Height
1.05 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Voltage
125VAC
Color
White
Special Features
Illuminated
Application Environment
Heavy Use Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Material
Polycarbonate
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Outlet Type
Duplex
Corrosion Resistant
No
Tamper Resistant
No
Sub-Category
Duplex Receptacles
HP
1/2 hp
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weight
0.25 lb
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Extra Heavy Duty Hospital Grade
Mounting Hardware Material
Screw Mounting
Nema Rating
5-15R
Maximum Horsepower
0.5
UPC
783585000000
Wattage
1875 W
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Connectivity
Back and Side Wired Screw Terminals
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Number Of Wires
3-Wire
Amperage
15 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Style
Finder Groove Face
Type
Receptacle
Shrouded
No
Surge Protection
No
Polarized
Yes
For Location
Indoor
Connection Orientation
Straight
AFCI
No
Housing Material
Polycarbonate
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Grade
Hospital Grade Fed. Spec.
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94V-2
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Device Color
White
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Grade
Heavy Duty Spec Grade
Dielectric Voltage
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex electrical outlet rated as Hospital Grade and suitable for use in demanding environments. It features a polycarbonate face with finder groove and is rated for indoor use in dry locations. The receptacle supports both back and side wired screw terminal connections, accommodating #14 to #10 AWG copper wire, and includes product identification markings indicating ratings as part of the device.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125 V AC

  • NEMA Configuration: 5-15R, standard duplex outlet

  • Grade: Hospital Grade Fed. Spec., intended for use in demanding environments

  • Contact Material: Nickel-plated brass contacts

  • Grounding: Four-point grounding system offers redundant ground continuity

  • Impact Resistance: Deep polycarbonate face with finder groove

  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)

  • Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation

  • Illumination Feature: Equipped with two LEDs that illuminate the device

  • Certifications/Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant, UL Listed to UL498 File E2186
