  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

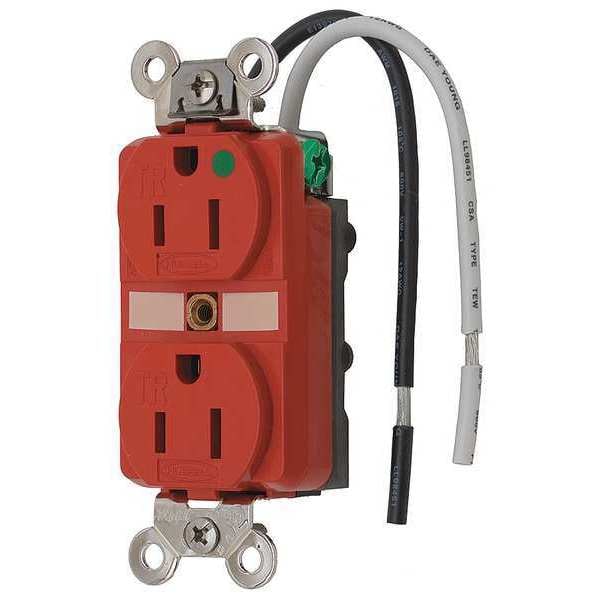

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200SGRA - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200SGRA

  • Zoro # G0337075

product price: $47.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8200SGRA
Zoro #
G0337075
UPC #
783585152257
Country of Origin
China

Dimensions

Dimensions
3.29 in x 1.65 in x 1.27 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Overall Depth
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Minimum Wire Size
12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
Mounting Type
Flush
Outlet Type
Duplex
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Application Environment
Heavy Use Hospital Grade
Ligature Resistant
Yes
Color
Red
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Wire Lead
Corrosion Resistant
No
Voltage
125VAC
HP
1/2 hp
Weather Resistant
No
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Power Indicator
No
Application
Extra Heavy Duty Hospital Grade
Maximum Horsepower
0.5
Type
Receptacle
Mounting Hardware Material
Screw Mounting
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Carton Quantity
10
Amperage
15 A
Material
Thermoplastic
Dielectric Strength
Withstands 2,000V minimum
Wattage
1875 W
Connectivity
Wire Leads
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Hospital Grade
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Nema Rating
5-15R
Style
Tamper Resistant
Maximum Operating Temperature
167 Degrees F
Grade
Hospital Grade Fed. Spec.
AFCI
No
Cover Type
No Cover
UL 94 Flammability Rating
5VA, V-0
For Location
Indoor
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Thermoplastic
Connection Orientation
Straight
Surge Protection
No
Includes Mounting Hardware
Yes
Contact Material
Nickel-Plated Brass
Polarized
Yes
Shrouded
No
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
IP Suitability
IP20
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3 Wire
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94V-0 and UL 94-5 VA
Ground Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Device Grade
Heavy Duty Spec Grade
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Red

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is an extra heavy duty, hospital grade duplex receptacle suitable for use in commercial and institutional settings. It features a tamper-resistant mechanism and integral wire leads.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125 VAC

  • NEMA Configuration: 5-15R, standard duplex outlet type

  • Device Grade: Extra heavy duty hospital grade specification

  • Tamper Resistant: Built-in tamper-resistant style

  • Grounding System: Four-point grounded design with one-piece nickel-plated brass ground strap

  • Wire Connection Type: Integral wire leads support fast installation; accommodates #12–#10 AWG copper wire only

  • Mounting Type: Flush mount with included mounting hardware

  • Material & Construction: Impact resistant thermoplastic housing and face; UL94V-0 flammability rating

  • Operating Temperature Range: -40°F to +167°F (maximum continuous use at 75°C)

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 listed
