  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

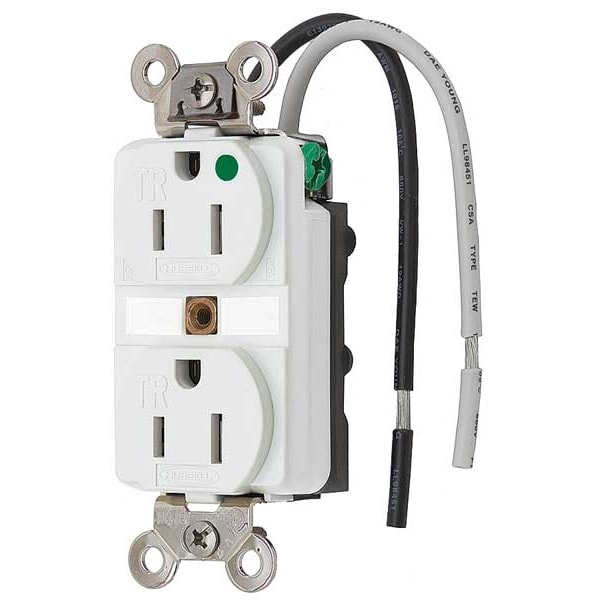

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200SGWA - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200SGWA

  • Zoro # G1914717

product price:  $45.02
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200SGWA
Zoro #
G1914717
UPC #
783585152264
Country of Origin
China

Dimensions

Wire Size
#12 AWG to #10 AWG
Dimensions
3.29 in x 1.65 in x 1.27 in
Display Size
Standard Sized Product
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Overall Depth
1.3 in
Face Plate Height
2.8 in
Face Plate Width
1.6 in
Height
1.27 in
Length
3.29 in
Width
1.65 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
C22.2, CSA Certified, Federal Specification W-C-596, NEMA WD-6, No. 42 File 285, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Corrosion Resistant
No
NEMA Configuration
5-15
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Wire Lead
Surge Suppression
No
Voltage
125VAC
Material
Thermoplastic
Power Indicator
No
Application Environment
Heavy Use Hospital Grade
Ligature Resistant
Yes
HP
1/2 hp
Sub-Category
Duplex Receptacles
Color
White
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Gangs
1
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Type
Receptacle
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Nema Rating
5-15R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Tamper Resistant
Connectivity
Wire Leads
Series
Hospital Grade
Wattage
1875 W
Number Of Wires
3-Wire
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Mounting Hardware Material
Screw Mounting
Maximum Horsepower
0.5
Application
Extra Heavy Duty Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
Amperage
15 A
GFCI
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Grade
Hospital Grade Fed. Spec.
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
For Location
Indoor
NEMA Enclosure Rating
1
Contact Material
Nickel-Plated Brass
Polarized
Yes
UL 94 Flammability Rating
5VA, V-0
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Shrouded
No
AFCI
No
Ground Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
IP Suitability
IP20
Poles and Wires
2 Pole, 3 Wire
Device Color
White
Device Grade
Heavy Duty Spec Grade
Flammability
UL 94V-0 and UL 94-5 VA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-0 and UL 94-5 VA Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Ground Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex straight blade receptacle rated for extra heavy duty and hospital grade use. It features tamper-resistant contacts and integral wire leads to facilitate installation; no exposed live parts when installed as specified. The device is constructed from thermoplastic housing with nickel-plated brass contacts and includes a four-point grounding system.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A, 125 VAC operation

  • NEMA Configuration: 5-15R, standard duplex outlet type

  • Tamper Resistant: Contact mechanism is designed to limit access

  • Grounding: Four-point grounded design; accommodates #12–#10 AWG copper wire

  • Wire Connection Type: Integral wire leads and screw terminals support back or side wiring methods

  • Material Construction: Thermoplastic housing with nickel-plated brass contacts and one-piece ground strap

  • Mounting Type: Flush mount; includes mounting hardware and grounding clip

  • Performance Ratings: Withstands dielectric voltage of at least 2,000V; certified current interrupting at full rated current; UL94V-0 & UL94-5VA flammability rating; IP20 indoor suitability

  • Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186
