  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

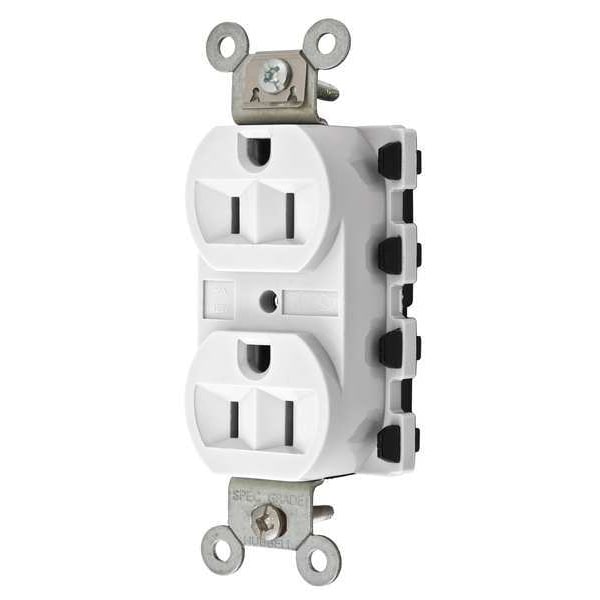

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP5262WA - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP5262WA

  • Zoro # G4573274

product price:  $10.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNAP5262WA
Zoro #
G4573274
UPC #
783585247786
Country of Origin
China

Dimensions

Wire Size
#12 AWG
Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Overall Depth
1.1 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
125VAC
Weather Resistant
No
Surge Suppression
No
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Tamper Resistant
No
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Standard Duplex
Outlet Type
Duplex
Material
Nylon
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Power Indicator
No
Color
White
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Modular
Brand
Hubbell Wiring Device-Kellems
Amperage
15 A
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Number Of Conductors
3-Wire Grounding
Connectivity
Connectorized
Series
Extra Heavy Duty
Number Of Wires
3-Wire
Type
Standard Duplex
Nema Rating
5-15R
Maximum Horsepower
0.5
Style
Finder Groove Face
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Polarized
Yes
Cover Type
No Cover
Includes
Grounding Clip, Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Grade
Federal Specification
Housing Material
Nylon
For Location
Indoor
Surge Protection
No
AFCI
No
Market
Commercial
Includes Mounting Hardware
Yes
Shrouded
No
GFCI
No
Contact Material
Brass
Mounting Screws
Zinc plated steel
Face
Nylon
Mounting Strap
Galvanized steel
Contacts
Brass
Device Color
White
Auto Self-grounding Staple
Stainless steel
Current Interrupting
Receptacle certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Base
PBT
Flammability
UL 94V-2

Description

The HUBBELL 15A Duplex Modular Receptacle 125VAC 5-15R WH is a flush-mount duplex receptacle intended for modular wiring installations.


Key Features of the HUBBELL 15A Duplex Modular Receptacle:

  • Amperage/Voltage: Rated for 15 A, 125 VAC operation

  • NEMA Configuration: NEMA 5-15R duplex outlet

  • Wiring Method: Modular back-wired connection suitable for #12 AWG wire

  • Mounting Type: Flush mount with included mounting hardware; single gang configuration

  • Material Construction: Nylon face and housing; brass contacts; galvanized steel mounting strap

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage

  • AFCI/GFCI/Tamper Resistant/Surge Protection: Not applicable or not present on this model

  • Certifications & Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 compliant

The HUBBELL 15A Duplex Modular Receptacle features SNAPConnect® technology to support connectorized installation during rough-in and snap-in connection after wall completion.
