  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

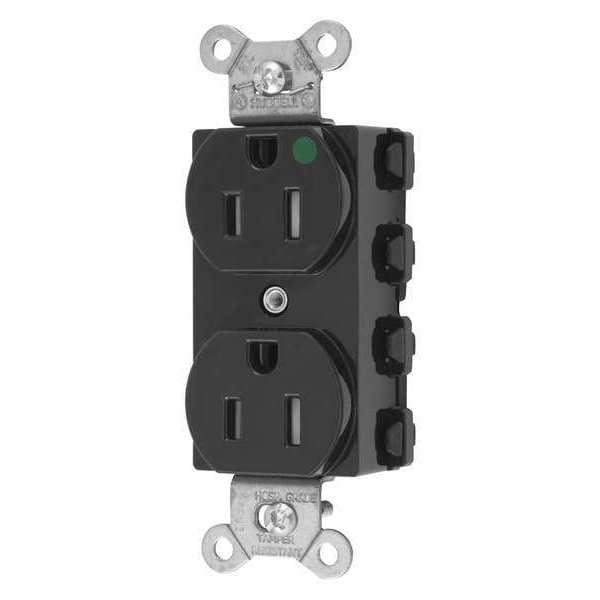

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8200BKTRA - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8200BKTRA

  • Zoro # G4571957

product price:  $25.04
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8200BKTRA
Zoro #
G4571957
UPC #
783585553177
Country of Origin
Mexico

Dimensions

Height
1.1 in
Width
1.64 in
Overall Depth
1.1 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Maximum Wire Size
12 AWG
Wire Size
#12 AWG
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Voltage
125VAC
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Wiring Method - Plugs and Receptacles
Modular
Corrosion Resistant
No
Weather Resistant
No
Material
Nylon
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Mounting Type
Flush
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Sub-Category
Duplex Receptacles
Application Environment
Commercial
NEMA Rating
1
Outlet Type
Duplex
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
AFCI
No
Contact Material
Brass
NEMA Enclosure Rating
1
Horsepower Rating
1/2 hp
Shrouded
No
GFCI
No
Surge Protection
No
Housing Material
Nylon
Connection Orientation
Straight
For Location
Indoor
Includes
Wall Plate or Weatherproof Cover
Maximum Operating Temperature
167 Degrees F
Grade
Hospital Grade Fed. Spec.
Polarized
Yes
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Style
Smooth Face
Dielectric Strength
Withstands 2,000V minimum
Application
Hospital Grade
Series
Hospital Grade
Wattage
1875 W
Horsepower - Maximum
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Conductors
3-Wire Grounding
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)

Description

The HUBBELL SNAPConnect® Receptacle is a 15 A, 125V AC flush mount duplex outlet suitable for use in commercial and hospital settings. This modular receptacle features a connectorized wiring method that enables installation by snapping the terminal into place during final assembly.


Key Features of the HUBBELL SNAPConnect® Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125V AC

  • NEMA Configuration: 5-15R standard duplex outlet

  • Wiring Method: Modular back-wired connection using SNAPConnect technology

  • Tamper Resistant: Tamper-resistant; grounded

  • Mounting Type: Flush mount; single gang configuration

  • Material: Nylon housing with brass contacts

  • Operating Temperature Range: -40°C to 75°C (without impact)

  • Standards Compliance: CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
