  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

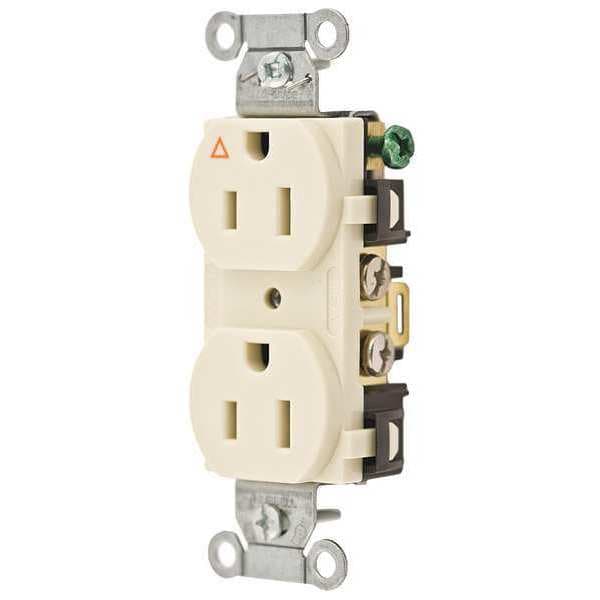

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG15CRI - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG15CRI

  • Zoro # G2270825

product price: $8.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG15CRI
Zoro #
G2270825
UPC #
783585147581
Country of Origin
China

Dimensions

Dimensions
1.32 in x 0.83 in x 3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
3.3 in
Width
0.83 in
Length
1.32 in
Height
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Surge Suppression
No
Sub-Category
Duplex Receptacles
Application Environment
Commercial
Number of Gangs
1
Special Features
Corrosion Resistant, Isolated Ground
Corrosion Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
No
Voltage
125VAC
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
HP
1/2 hp
Color
Ivory
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Material
Nylon
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Side
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Nema Rating
5-15R
Carton Quantity
10
Amperage
15 A
Style
Smooth Face
Connectivity
Side Wired Screw Terminals
Brand
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Type
Standard Duplex
Maximum Horsepower
0.5
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Cover Type
No Cover
Contact Material
Brass
Surge Protection
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
Connection Orientation
Straight
Horsepower Rating
1/2 hp
GFCI
No
NEMA Enclosure Rating
1
Market
Commercial
For Location
Indoor
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Shrouded
No
Includes Mounting Hardware
Yes
Base
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Automatic Self-grounding Staple
Stainless steel
Flammability
UL 94 V-2
Mounting Screws
Galvanized Steel
Power Contacts
.030 in. (.8) Brass
Wire Clamp
.062 in. (1.6) Nickel plated steel
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Face
Nylon
Mounting Strap
.040 in. (1) Galvanized steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screws
Plated steel
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Ivory
Dielectric Voltage
Withstands 2,000V minimum
Ground Contacts
Brass
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Commercial Specification Grade

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex isolated ground receptacle suitable for use in commercial specification grade applications. It features a smooth nylon face and is rated for 15 amps at 125 volts AC, with side-wired screw terminals for secure connectivity. The isolated ground design separates the grounding contacts from the mounting strap, which can help reduce electrical noise in sensitive installations.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Isolated Ground: Triangle marking on face indicates an isolated ground configuration to separate equipment grounding from conventional system grounding.

  • Electrical Ratings: Rated for 15 A, 125 V AC; supports up to #10 AWG copper wire.

  • Construction: Components include nylon base and face with brass power and ground contacts; corrosion resistant components.

  • Mounting Type: Flush mount with galvanized steel mounting strap and included hardware.

  • NEMA Configuration: Standard NEMA 5-15R duplex outlet (2-pole, 3-wire).

  • Certifications: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant.

  • Performance: Dielectric voltage rating: minimum 2,000V; flammability rating UL94 V-2; operating temperature range -40°C to +75°C (without impact).
