  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

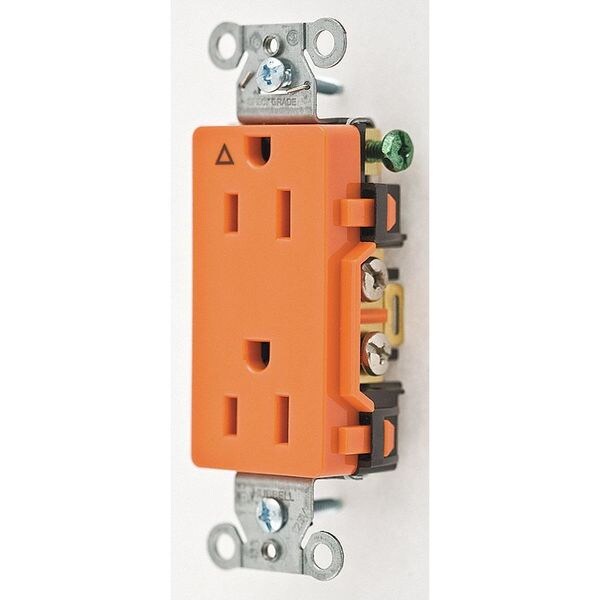

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG15DR - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG15DR

  • Zoro # G0899753

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG15DR
Zoro #
G0899753
UPC #
783585146850
Country of Origin
China

Dimensions

Width
0.83 in
Height
3.28 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Dimensions
1.29 in x 0.83 in x 3.28 in
Wire Size
#14 AWG to #10 AWG
Length
1.29 in
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, No. 42, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Weather Resistant
No
Special Features
Isolated Ground
Material
Nylon
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type
Flush
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Decorator
Number of Gangs
1
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Application Environment
Commercial
Tamper Resistant
No
Voltage
125VAC
Type
Duplex
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Housing Material
Nylon
Shrouded
No
Surge Protection
No
AFCI
No
For Location
Indoor
Polarized
Yes
Contact Material
Brass
Cover Type
No Cover
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Horsepower Rating
1/2 hp
Market
Commercial
Connection Orientation
Straight
GFCI
No
Maximum Operating Temperature
167 Degrees F
Ground Contacts
Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-2
Terminal Screws
Plated steel
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Face
Nylon
Base
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Power Contacts
.030 in. (.8) Brass
Wire Clamp
.062 in. (1.6) Nickel plated steel
Automatic Self-grounding Staple
Stainless steel
Device Color
Orange
Mounting Screws
Galvanized Steel
Mounting Strap
.040 in. (1) Galvanized steel
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
0.5
Series
Commercial Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Application
Commercial Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
1875 W
Nema Rating
5-15R
Style
Style Line Decorator

Description

The HUBBELL Decorator Duplex Receptacle is a 15 amp, 125V AC flush mount outlet suitable for use in commercial settings. This isolated ground receptacle features an insulation barrier that separates ground contacts from the mounting strap and conventional grounding system; compatible with dedicated insulated ground wiring. The device supports back and side wired screw terminals for flexible installation.


Key Features of the HUBBELL Decorator Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125V AC

  • Mounting Type: Flush mount with included galvanized steel mounting hardware

  • NEMA Configuration: 5-15R decorator duplex style

  • Grounding: Isolated ground design with green grounding screw connected directly to brass ground contacts

  • Material Construction: Nylon face and base; brass power and ground contacts; plated steel terminal screws

  • Circuit Compatibility: Accepts #14–#10 AWG copper stranded or solid conductors via back or side wiring methods

  • Performance Ratings: Withstands dielectric voltage of 2,000V minimum; UL 94 V-2 flammability rating; certified current interrupting at full rated current

  • Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed (UL498 File E2186)
