  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

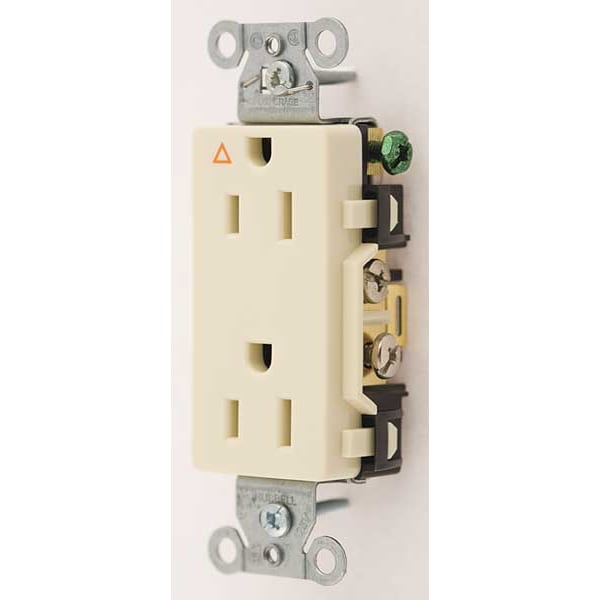

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG15DRI - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG15DRI

  • Zoro # G3455392

product price: $10.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG15DRI
Zoro #
G3455392
UPC #
783585146874
Country of Origin
China

Dimensions

Height
3.28 in
Width
0.83 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Length
1.29 in
Dimensions
1.29 in x 0.83 in x 3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-15
Tamper Resistant
No
HP
1/2 hp
Weather Resistant
No
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Corrosion Resistant
No
Material
Nylon
Power Indicator
No
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Isolated Ground
Mounting Type
Flush
Application Environment
Commercial
Number of Gangs
1
Type
Duplex
NEMA Enclosure Rating
1
AFCI
No
Includes Mounting Hardware
Yes
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Brass
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Grade
Federal Specification
Surge Protection
No
Cover Type
No Cover
Market
Commercial
For Location
Indoor
GFCI
No
Dielectric Voltage
Withstands 2,000V minimum
Power Contacts
.030 in. (.8) Brass
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Ground Contacts
Brass
Mounting Strap
.040 in. (1) Galvanized steel
Wire Clamp
.062 in. (1.6) Nickel plated steel
Automatic Self-grounding Staple
Stainless steel
Device Color
Ivory
Face
Nylon
Base
Nylon
Terminal Screws
Plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-2
Mounting Screws
Galvanized Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Style
Style Line Decorator
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Series
Commercial Specification Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Commercial Grade
Nema Rating
5-15R

Description

The HUBBELL Decorator Duplex Receptacle is a 15 amp, 125V AC flush mount outlet suitable for use in applications where isolated ground connections are specified. This receptacle includes insulation barriers that separate the ground contacts from the mounting strap and conventional grounding system; includes a green grounding screw intended for use in an isolated ground circuit. The device has a Decorator-style design and includes triple wipe brass contacts for reliable connectivity.


Key Features of the HUBBELL Decorator Duplex Receptacle:

  • Isolated Ground: Designed with insulated barriers to isolate ground contacts; indicated by triangle marking on face.

  • Electrical Ratings: Rated for 15 A, 125V AC; rated for current interrupting at its specified rating.

  • NEMA Configuration: 5-15R duplex outlet suitable for standard straight blade plugs.

  • Wiring Options: Back and side wired screw terminals accommodate #14–#10 AWG copper wire (stranded or solid).

  • Material Construction: Nylon base and face with galvanized steel mounting strap; brass power and ground contacts.

  • Mounting Type: Flush mount installation; includes mounting hardware and grounding staple.

  • Operating Conditions: Withstands dielectric voltage of 2,000V minimum; flammability rated UL 94 V-2; operating temperature range -40°C to +75°C (without impact).

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186.
