  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

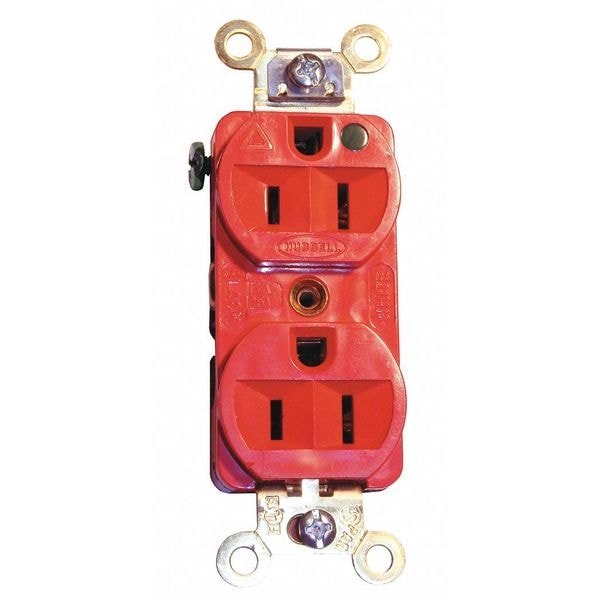

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG8200R - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG8200R

  • Zoro # G2184113

product price: $43.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG8200R
Zoro #
G2184113
UPC #
783585879185
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.33 in x 1.05 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Width
1.33 in
Length
3.28 in
Height
1.05 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Sub-Category
Duplex Receptacles
Special Features
Isolated Ground
Color
Red
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Material
Nylon
Tamper Resistant
No
Corrosion Resistant
No
Power Indicator
No
Outlet Type
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Application Environment
Heavy Use Hospital Grade
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Style
Finder Groove Face
Number Of Wires
3-Wire
Application
Extra Heavy Duty Hospital Grade
Series
Extra Heavy Duty Hospital Grade
Nema Rating
5-15R
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Carton Quantity
10
Amperage
15 A
Type
Duplex Receptacle
Maximum Horsepower
0.5
Brand
Hubbell Wiring Device-Kellems
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2
Grade
Hospital Grade Fed. Spec.
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
GFCI
No
Shrouded
No
AFCI
No
NEMA Enclosure Rating
1
Contact Material
Brass
Housing Material
Nylon
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
For Location
Indoor
Polarized
Yes
Includes Mounting Hardware
Yes
Surge Protection
No
Device Color
Red
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Flammability
UL 94V-2
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Grade
Isolated Ground
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is a traditional duplex receptacle rated as "hospital grade" and suitable for use in demanding environments. It features isolated ground construction to separate the ground contacts from the mounting strap and conventional grounding system, intended to provide isolated ground connections. The device accommodates both back and side wiring with screw terminals, accepts #14–#10 AWG copper wire, and is suitable for indoor use in dry locations unless additional protection is provided.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Amperage/Voltage: Rated for 15 A at 125 VAC

  • NEMA Configuration: 5-15R (2-pole, 3-wire)

  • Isolated Grounding: Triangle marking on face indicates isolated ground design

  • Construction: Nylon housing with finder groove face

  • Wiring Method: Back and side wired screw terminals; accommodates #14–#10 AWG stranded or solid copper wire

  • Certification & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186

  • Operating Temperature Range: -40°C minimum (without impact) to maximum continuous +75°C (167°F)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Includes mounting hardware and grounding staple
