  6. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

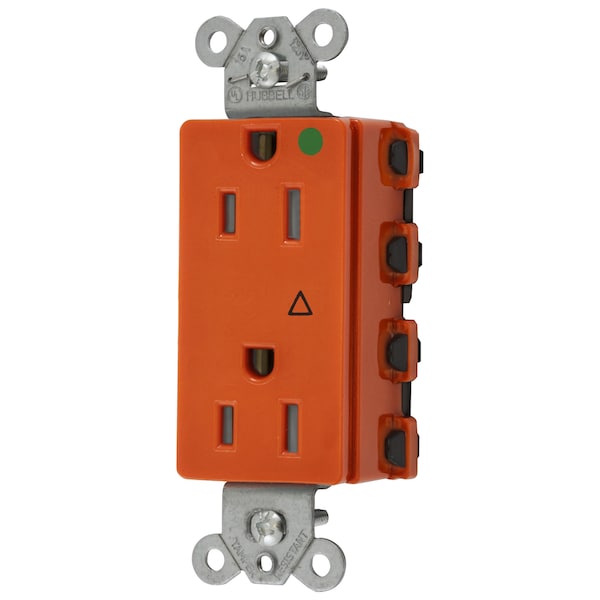

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground SNAP2172IGL - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

  • Mfr # SNAP2172IGL

  • Zoro # G900489926

product price:  $30.04
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2172IGL
Zoro #
G900489926
UPC #
783585249315
Country of Origin
China

Dimensions

Width
1.64 in
Height
1.1 in
Wire Size
#12 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.64 in x 1.1 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Isolated Ground
Housing Color
Orange
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Color
Orange
Type
Power Indicating LED
Nema Rating
5-15R
Brand
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Indicator Type
Green LED
Material
Nylon
Number Of Wires
3-Wire
Number Of Conductors
3-Wire Grounding
Connectivity
Connectorized
Dielectric Strength
Withstands 2,000V minimum
Maximum Horsepower
0.5
Carton Quantity
10
Style
Style Line Decorator
Amperage
15 A
Application
Hospital Grade
Indicator(s) Type
Green LED
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Isolated Ground,Decorator Duplex Receptacle, Hospital Grade, SNAPConnect 2, 15A 125V,LED Indicator, 2-Pole 3-Wire Grounding, 5-15R, Orange
