  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

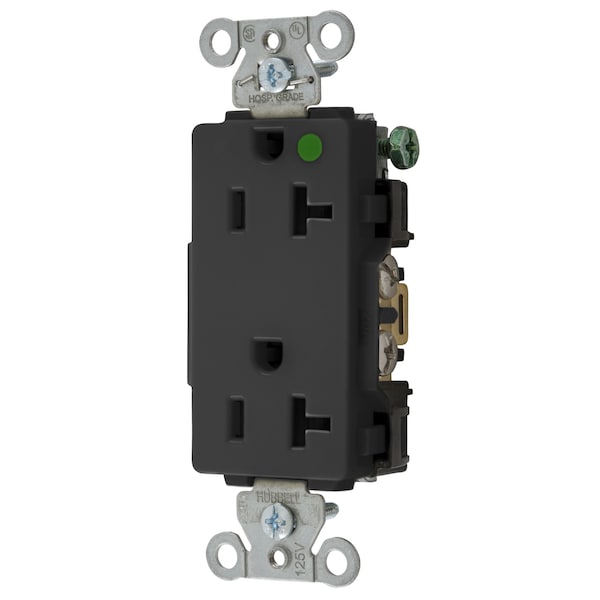

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 2182BK - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 2182BK

  • Zoro # G200622450

product price: $22.14
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2182BK
Zoro #
G200622450
UPC #
783585196619
Country of Origin
United States

Dimensions

Height
1.15 in
Width
1.57 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.57 in x 1.15 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Type
Duplex Receptacle
Material
Nylon
Color
Black
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Style
Style Line decorator
Application
Hubbell-Pro Heavy Duty Hospital Grade
Nema Rating
5-20R
Series
Hubbell-Pro
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
Carton Quantity
10
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Maximum Horsepower
1
Mounting Hardware Material
Screw Mounting
Wattage
2500 W
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Number Of Wires
3-Wire
Dielectric Voltage
Withstands 2,000V minimum
Power Contacts
Brass
Mounting Screws
Zinc plated steel
Flammability
UL 94V-2
Automatic Self-grounding Staple
Stainless steel
Face
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base
PBT
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Black
Mounting Strap
Galvalized steel
Ground Contacts
Brass
Clamping Plate
Plated steel
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Decorator DuplexReceptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Black
