  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

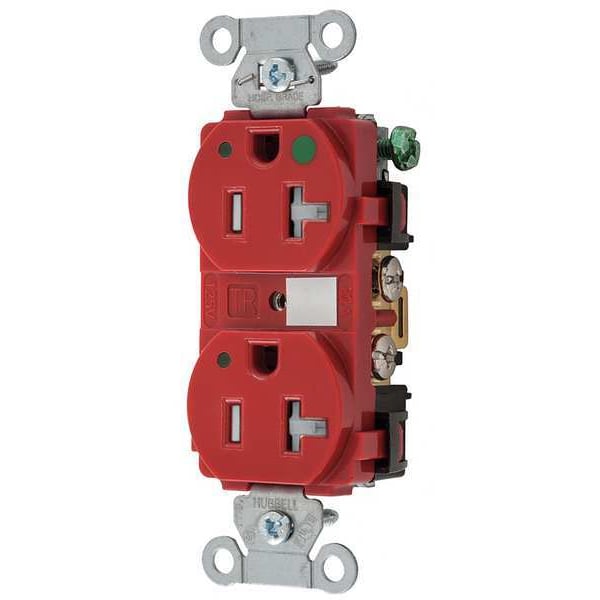

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300REDLTRA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300REDLTRA

  • Zoro # G6151521

product price: $32.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300REDLTRA
Zoro #
G6151521
UPC #
783585196800
Country of Origin
Mexico

Dimensions

Dimensions
3.28 in x 1.57 in x 1.15 in
Wire Size
#12 AWG to #10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Minimum Wire Size
12 AWG
Width
1.57 in
Height
1.15 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
HP
1 hp
Power Indicator
Yes
Outlet Type
Duplex
Mounting Type - Plugs and Receptacles
Flush
Tamper Resistant
Yes
Color
Red
Weather Resistant
No
Mounting Type
Flush
Voltage
125VAC
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Application Environment
Hospital Grade
Surge Suppression
No
Number of Gangs
1
Amperage
20 A
Indicator Type
Green LED
Wattage
2500 W
Maximum Horsepower
1
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-20R
Style
Smooth Face
Application
Hubbell-Pro Heavy Duty Hospital Grade
Brand
Hubbell Wiring Device-Kellems
Series
Hubbell-Pro
Mounting Hardware Material
Screw Mounting
Connectivity
Back and Side Wired
Type
Receptacle
Number Of Wires
3-Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
AFCI
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Shrouded
No
Surge Protection
No
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Contact Material
Brass
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
NEMA Enclosure Rating
1
Automatic Self-grounding Staple
Stainless steel
Terminal Accommodation
#12-10 AWG stranded or solid copper wire only.
Mounting Strap
Galvalized steel
Ground Contacts
Brass
Clamping Plate
Plated steel
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screws
Zinc plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts
Brass
Device Color
Red
Dielectric Voltage
Withstands 2,000V minimum
Base
PBT
Flammability
UL 94V-2
Face
Nylon
Horsepower - Maximum
1
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Indicator(s) Type
Green LED
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a traditional duplex electrical outlet designated as hospital grade and suitable for demanding environments. It features an integrated shutter mechanism and a green LED indicator to identify emergency circuits. The receptacle is constructed with a nylon face and includes a galvanized steel mounting strap for secure installation.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A, 125 VAC operation

  • NEMA Configuration: 5-20R

  • Tamper Resistant: Integrated shutter mechanism helps prevent unwanted object insertion

  • Power Indicator: Green LED indicator

  • Wiring Options: Back and side wired; accommodates #12–#10 AWG stranded or solid copper wire

  • Material Construction: Nylon face and housing with brass contacts; galvanized steel mounting strap

  • Mounting Type: Flush mount design with included screw hardware

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Certifications & Standards: UL Listed, CSA Certified, NEMA WD-6 compliant, Hospital Grade Fed. Spec.
