  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

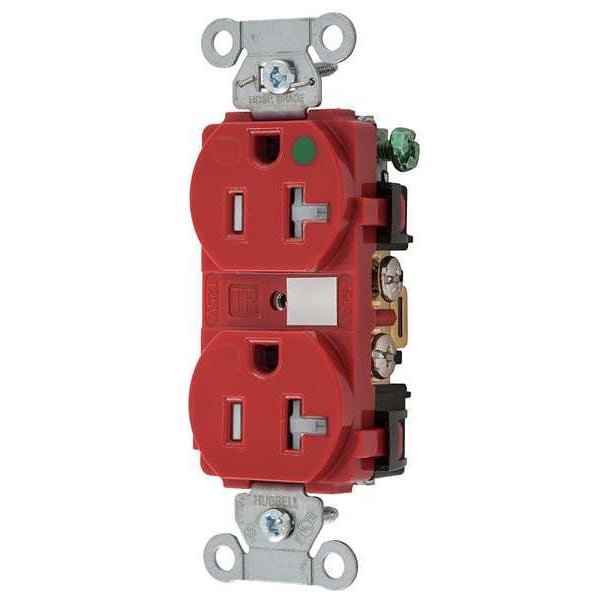

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300REDTRA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300REDTRA

  • Zoro # G6221056

product price: $24.64
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300REDTRA
Zoro #
G6221056
UPC #
783585197128
Country of Origin
Mexico

Dimensions

Dimensions
3.28 in x 1.57 in x 1.15 in
Wire Size
#12 AWG to #10 AWG
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Length
3.28 in
Width
1.57 in
Height
1.15 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method
Back, Side
Material
Nylon
Weather Resistant
No
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Duplex
Ligature Resistant
Yes
Application Environment
Hospital Grade
Number of Gangs
1
Corrosion Resistant
No
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
Yes
Power Indicator
No
Color
Red
Surge Suppression
No
NEMA Configuration
5-20
Outlet Type - Plugs and Receptacles
Standard Duplex
Connectivity
Back and Side Wired
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
Type
Receptacle
Application
Hubbell-Pro Heavy Duty Hospital Grade
Amperage
20 A
Nema Rating
5-20R
Carton Quantity
10
Wattage
2500 W
Brand
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Series
Hubbell-Pro
Mounting Hardware Material
Screw Mounting
Maximum Horsepower
1
Connection Orientation
Straight
Shrouded
No
Contact Material
Brass
GFCI
No
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Polarized
Yes
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
NEMA Enclosure Rating
1
Surge Protection
No
AFCI
No
Grade
Hospital Grade Fed. Spec.
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Device Color
Red
Mounting Strap
Galvalized steel
Flammability
UL 94V-2
Current Interrupting
Certified for current interrupting at full rated current
Face
Nylon
Ground Contact
Brass
Base
PBT
Power Contacts
Brass
Clamping Plate
Plated steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#12-10 AWG stranded or solid copper wire only.
Mounting Screws
Zinc plated steel
Dielectric Voltage
Withstands 2,000V minimum
Automatic Self-grounding Staple
Stainless steel
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a traditional duplex electrical outlet suitable for use in environments requiring heavy-duty and hospital-grade receptacles. It features tamper-resistant shutters and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods, accommodates #12 to #10 AWG copper wire, and includes mounting hardware for flush installation.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R, duplex style with polarized design

  • Tamper Resistant: Built-in shutter mechanism

  • Wiring Options: Back and side wired; screw terminals accept #12–#10 AWG stranded or solid copper wire

  • Material Construction: Nylon face and housing with brass power contacts; galvanized steel mounting strap

  • Mounting Type: Flush mount with included zinc-plated steel screws

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Standards Compliance: Certified to CSA C22.2 No.42, UL Listed to UL498, Federal Specification W-C-596, NEMA WD-6 compliant
