  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

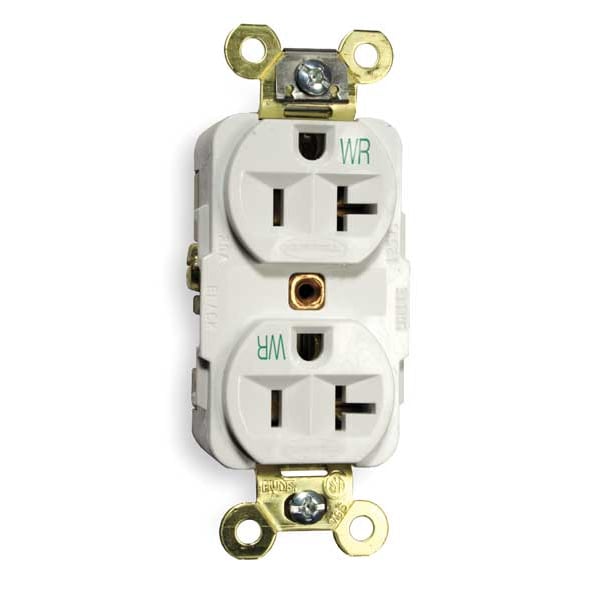

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5362WWR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362WWR

  • Zoro # G1198111

product price:  $33.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5362WWR
Zoro #
G1198111
UPC #
783585320595
Country of Origin
United States

Dimensions

Height
1.19 in
Wire Size
#12 AWG to #10 AWG
Length
3.28 in
Display Size
Standard Sized Product
Width
1.65 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Face Plate Width
1.7 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
NEMA Configuration
5-20
Outlet Type
Duplex
Color
White
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
Corrosion Resistant
No
Surge Suppression
No
Voltage
125VAC
Weather Resistant
Yes
Mounting Type
Flush
Application Environment
Harsh and Heavy Use Industrial
Material
Nylon/Reinforced PET
Tamper Resistant
No
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
Yes
Weight
0.25 lb
Number Of Wires
3-Wire
Maximum Horsepower
1
Series
Extra Heavy Duty
Type
Weather Resistant
Environmental Rating
Weather Resistant
Wattage
2500 W
Nema Rating
5-20R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Finder Groove Face
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Amperage
20 A
UPC
783585000000
Mounting Hardware Material
Screw Mounting
Application
Extra Heavy Duty Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
UL 94 Flammability Rating
V-0, V-2
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
AFCI
No
Connection Orientation
Straight
Grade
Federal Specification
Includes Mounting Hardware
Yes
Surge Protection
No
Horsepower Rating
1 hp
Cover Type
No Cover
Contact Material
Nickel-Plated Brass
Housing Material
Nylon, Reinforced PET
Shrouded
No
GFCI
No
Auto Ground Clip Material
Stainless Steel
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Ground Screw Material
#10-32 Silicon Bronze (Green)
Horsepower
1
Top Material
Nylon
Rating
15A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Shape
Traditional
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Duplex
Base Material
Reinforced PET
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Device Color
White
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Face Style
Finder Groove
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.037" (.9) Brass
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Strap Material
.050" (1.3) Brass
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Environmental Conditions
Weather Resistant
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex outlet rated for extra heavy duty and specification-grade applications. It includes weather resistant construction and is intended for use in industrial environments. The receptacle supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Its Finder Groove face style provides easier identification during installation.


Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R, duplex outlet type

  • Wiring Method: Back and side wired screw terminals; accommodates #12–#10 AWG copper wire

  • Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts

  • Weather Resistant: Rated for use in demanding environments

  • Mounting Type: Flush mount with included mounting hardware

  • Grounding: Integral ground strap and grounding clip included; grounded design (2-pole, 3-wire)

  • Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V; Top rated UL94 V-2 flammability or better
