Shop HUBBELL WIRING DEVICE-KELLEMS

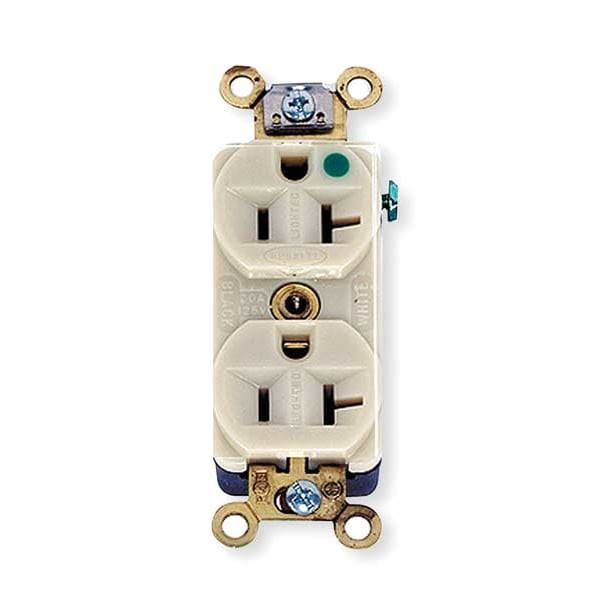

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300ILI

  • Zoro # G3106004

product price:
$
51.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8300ILI
Zoro #
G3106004
UPC #
783585016498
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Height
2.7 in
Face Plate Width
1.6 in
Width
1.33 in
Height
1.05 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Color
Ivory
Weather Resistant
No
HP
1 hp
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Material
Impact Modified PBT/Reinforced PET
Surge Suppression
No
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Voltage
125VAC
Outlet Type
Duplex
Corrosion Resistant
No
Special Features
Illuminated
Application Environment
Heavy Use Hospital Grade
Nema Rating
5-20R
Type
Receptacle
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Maximum Horsepower
1
Number Of Wires
3-Wire
Style
Finder Groove Face
Series
Hospital Grade
Brand
Hubbell Wiring Device-Kellems
Amperage
20 A
For Location
Indoor
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Connection Orientation
Straight
AFCI
No
UL 94 Flammability Rating
V-2
Surge Protection
No
Contact Material
Nickel-Plated Brass
Polarized
Yes
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
GFCI
No
NEMA Enclosure Rating
1
Housing Material
Polycarbonate
Shrouded
No
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Grade
Heavy Duty Spec Grade
Device Color
Ivory
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Poles and Wires
2 Pole, 3 Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1
Material - Mounting Hardware
Screw Mounting
Wattage
2500 W

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex straight blade receptacle suitable for use in environments requiring extra heavy duty and hospital grade receptacles. This device features a compact design with an impact-resistant finder groove face and is rated for operation in specified environments as outlined by manufacturer specifications. It supports both back and side wiring methods using screw terminals, accommodates #12 to #10 AWG copper wire, and includes grounding provisions.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R (2-pole, 3-wire grounded)

  • Contact Material: Nickel-plated brass contacts; see manufacturer data for performance characteristics

  • Face Design: Polycarbonate housing with finder groove face; includes two LED indicators on the face

  • Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire

  • Grounding System: Four-point grounding system designed to maintain ground continuity

  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Flammability Rating: UL94 V-2 rated materials used throughout construction

  • Mounting Type: Flush mount; includes mounting hardware and grounding clip

  • Certifications & Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant, UL Listed to UL498 File E2186
