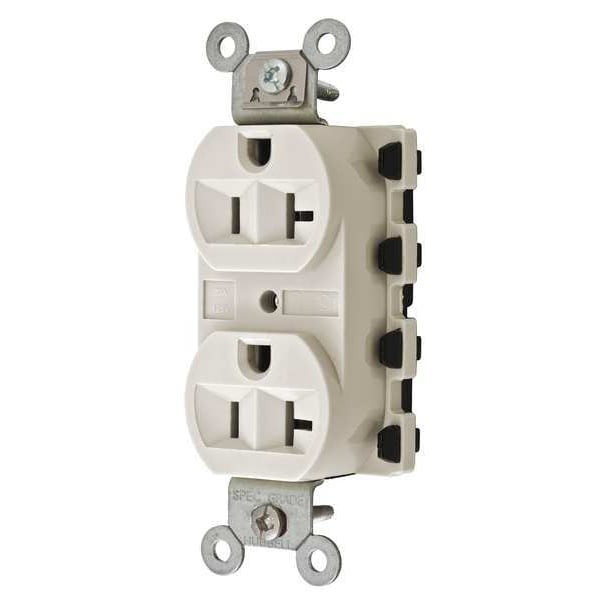

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP5362LAA
  • Zoro # G4632817
product price:
$
12.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SNAP5362LAA
Zoro #
G4632817
UPC #
783585247724
Country of Origin
China

Dimensions

Wire Size
#12 AWG
Dimensions
3.28 in x 1.64 in x 1.1 in
Display Size
Standard Sized Product
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Height
1.1 in
Width
1.64 in
Length
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Number of Gangs
1
Power Indicator
No
Tamper Resistant
Yes
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Modular
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Color
Light Almond
Surge Suppression
No
Material
Nylon
Voltage
125VAC
Corrosion Resistant
No
Weather Resistant
No
Carton Quantity
10
Type
Standard Duplex
Style
Finder Groove Face
Number Of Wires
3-Wire
Maximum Horsepower
1
Nema Rating
5-20R
Number Of Conductors
3-Wire Grounding
Brand
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Connectorized
Series
Extra Heavy Duty
Amperage
20 A
Cover Type
No Cover
Market
Commercial
Shrouded
No
Housing Material
Nylon
For Location
Indoor
Polarized
Yes
UL 94 Flammability Rating
V-2
Contact Material
Brass
Connection Orientation
Straight
Includes
Grounding Clip, Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
Surge Protection
No
AFCI
No
Horsepower Rating
1 hp
GFCI
No
Includes Mounting Hardware
Yes
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Current Interrupting
Receptacle certified for current interrupting at full rated current
Face
Nylon
Auto Self-grounding Staple
Stainless steel
Mounting Strap
Galvanized steel
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Light Almond
Flammability
UL 94V-2
Contacts
Brass
Mounting Screws
Zinc plated steel
Base
PBT
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Extra Heavy Duty Specification Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Wattage
2500 W
Horsepower - Maximum
1

Description

The HUBBELL 20A Duplex Modular Receptacle 125VAC 5-20R Almond is a duplex receptacle rated for modular wiring installations. Featuring SNAPConnect® technology, this device features a connector that permits installation during rough-in and then attached after wall finishing. The receptacle features a modular design intended to facilitate connection changes.


Key Features of the HUBBELL 20A Duplex Modular Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R, duplex outlet type

  • Wiring Method: Modular back-wired connection using SNAPConnect® system

  • Material Construction: Nylon face and housing; brass contacts; stainless steel auto self-grounding staple

  • Mounting Type: Flush mount with included mounting hardware (screw mounting)

  • Tamper Resistant: Yes; includes tamper-resistant mechanism as specified by manufacturer
