  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

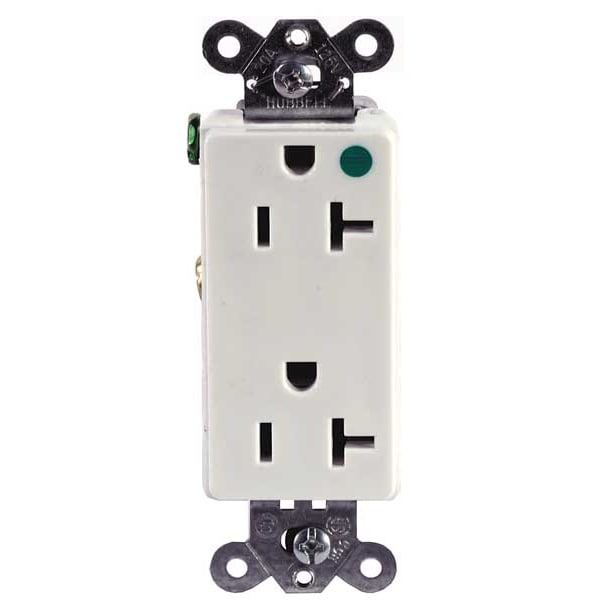

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG2182WA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG2182WA

  • Zoro # G2357735

product price: $42.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG2182WA
Zoro #
G2357735
UPC #
783585778013
Country of Origin
United States

Dimensions

Height
1.03 in
Width
1.36 in
Overall Depth
1 in
Minimum Wire Size
12 AWG
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Length
3.28 in
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.36 in x 1.03 in
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Power Indicator
No
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Weather Resistant
No
Material
Nylon
Special Features
Isolated Ground
Tamper Resistant
No
Voltage
125VAC
Outlet Type
Decorator
Application Environment
Heavy Use Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
HP
1 hp
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
UL 94 Flammability Rating
V-0, V-2
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Housing Material
Nylon
Polarized
Yes
NEMA Enclosure Rating
1
Grade
Hospital Grade Fed. Spec.
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Shrouded
No
Cover Type
No Cover
Includes Mounting Hardware
Yes
Surge Protection
No
Horsepower Rating
1 hp
Contact Material
Brass
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Device Color
White
Dielectric Voltage
Withstands 2,000V minimum
Device Grade
Isolated Ground
Flammability
TOP: UL 94 V-2 BASE: UL 94 V-0
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3 Wire
Current Interrupting
Certified for current interrupting at full rated current
Horsepower - Maximum
1
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-20R
Dielectric Strength
Withstands 2,000V minimum
Series
Extra Heavy Duty
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - TOP: UL 94 V-2 BASE: UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
2500 W
Style
Style Line Decorator
Application
Style Line Decorator Hospital Grade
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount, hospital grade electrical outlet rated for 20A and 125V AC. Features an isolated ground; grounding contacts are separated from the mounting strap.


Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

  • Isolated Ground: Triangle marking on face indicates isolated ground; dedicated insulated ground wire connection at green screw

  • Electrical Ratings: Rated for 20A, 125V AC; listed as suitable for current interrupting up to its rated capacity

  • NEMA Configuration: NEMA 5-20R, single phase, polarized (2 pole, 3 wire)

  • Wiring Options: Back and side wired screw terminals accommodate #12–#10 AWG stranded or solid copper wire

  • Material & Construction: High impact resistant nylon housing; triple wipe brass contacts

  • Mounting Type: Flush mount with included mounting hardware

  • Standards Compliance: CSA Certified C22.2 No.42 File 285; UL Listed to UL498 File E2186; Federal Specification W-C-596; NEMA WD-6 compliant

  • Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C (-40°F) without impact

  • Flammability Rating: TOP UL94 V-2 / BASE UL94 V-0
