  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded

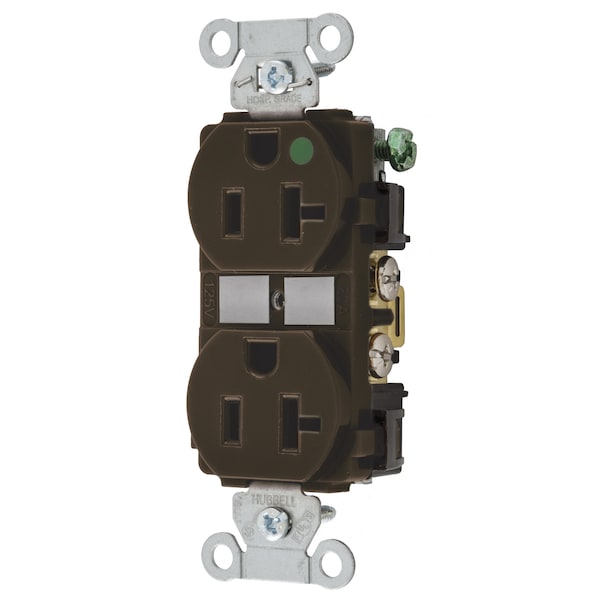

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded 8300 - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Grounded

  • Mfr # 8300

  • Zoro # G600701649

product price: $20.93
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300
Zoro #
G600701649
UPC #
783585197333
Country of Origin
United States

Dimensions

Width
1.57 in
Height
1.15 in
Length
3.28 in
Dimensions
3.28 in x 1.57 in x 1.15 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Standards
C22.2, Certified to CSA, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, No. 42 File 285, UL Listed to UL 498 File No. E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Nylon
Application
Hubbell-Pro Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Automatic Self-grounding Staple
Stainless steel
Flammability
UL 94V-2
Ground Contacts
Brass
Clamping Plate
Plated steel
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap
Galvalized steel
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Mounting Screws
Zinc plated steel
Base
PBT
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Brown
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts
Brass
Face
Nylon
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Material - Mounting Hardware
Screw Mounting
Series
Hubbell-Pro
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500 W
Number Of Wires
3-Wire
Style
Smooth Face
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
5-20R

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Tamper ResistantDuplex Receptacle, Hubbell-Pro, Hospital Grade, LED Indicator, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, Brown
