  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

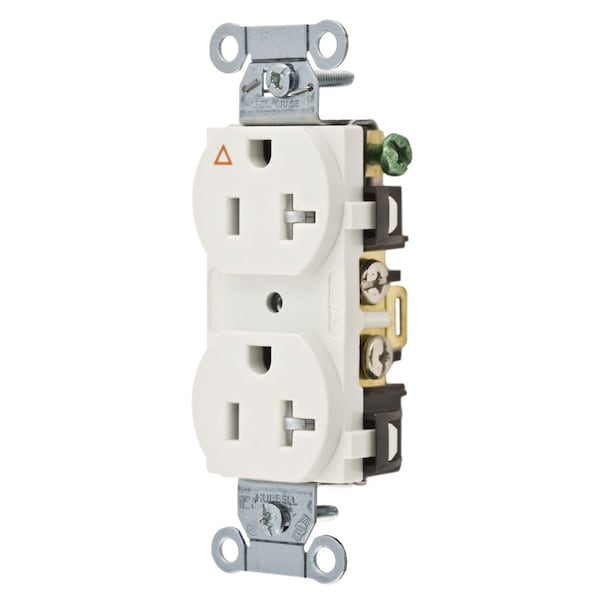

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground IG5352WTR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Isolated Ground

  • Mfr # IG5352WTR

  • Zoro # G600702547

product price:  $24.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IG5352WTR
Zoro #
G600702547
UPC #
783585540061
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.57 in
Length
3.28 in
Wire Size
#12 AWG to #10 AWG
Dimensions
3.28 in x 1.57 in x 1.07 in
Display Size
Standard Sized Product

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Standards
CSA 22.2, NEMA® WD-6 Compliant, No. 42, UL Listed to UL 498 File No. E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Application
Hubbell-Pro Heavy Duty Specification Grade
Base
Nylon
Mounting Screws
Stainless Steel
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Automatic Self-grounding Clip
Stainless steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screws
Brass
Power Contacts
.031 in. (.8) Brass
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Ground Contacts
.031" (.8) Brass
Device Color
White
Face
Nylon
Flammability
UL 94 V-2
Clamp
Nickel plated steel
Mounting Strap
Galvanized steel
Series
Hubbell-PRO
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Style
Smooth Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Tamper ResistantDuplex Receptacle, Isolated Ground, Commercial Grade, 20A 125V, 2-Pole3-Wire Grounding, 5-20R, Back and Side Wired, White
