  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

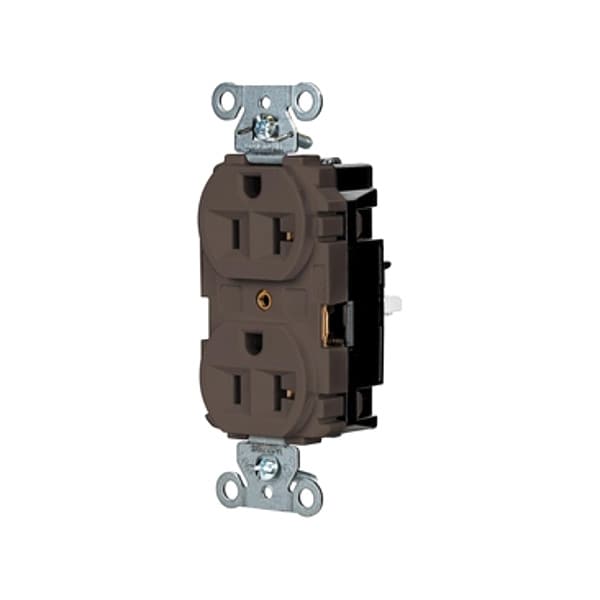

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 5362ST - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5362ST

  • Zoro # G810105411

product price: $9.92
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362ST
Zoro #
G810105411
UPC #
783585727585
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Height
2.8 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Brown
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Mounting Hardware
Number of Gangs
1
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
For Location
Indoor
Contact Material
Copper Alloy
Includes Mounting Hardware
Yes
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Grade
Federal Specification
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Number of Outlets
2
For Environment
Dry
Connection Orientation
Straight
Surge Protection
No
NEMA Enclosure Rating
1
GFCI
No
Hub Type
Feed Through
Cover Type
No Cover
AFCI
No
Shrouded
No
Polarized
Yes

Description

The HUBBELL Duplex Straight Blade Receptacle is a 20A, 125V AC rated for use in indoor, dry locations. It features the EdgeConnectTM screwless termination system that enables tool-free wire installation by simply inserting the wire and pressing down the plunger. This duplex receptacle accommodates two outlets and supports back-wired push-in connections suitable for copper conductors ranging from 14 AWG to 10 AWG.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Termination System: Screwless push-in wiring with spring termination; does not require a screwdriver or torque wrench.

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Circuit Tab: Split circuit tab supports multiple wiring configurations

  • Tamper Resistant: Tamper resistant

  • NEMA Configuration: 5-20R configuration; grounded, polarized, single-phase design with two poles and three wires.

  • Housing Material: Thermoplastic housing rated for temperatures from -40°F to 167°F; brown color finish.

  • Mounting & Hardware: Surface mount type; includes mounting hardware; non-flanged feed-through hub type.

  • Standards & Ratings: Meets CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA WD-6, UL 498 File No E2186 standards; NEMA Enclosure Rating Type 1 (IP20); UL94 V-2 flammability rating.
