  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

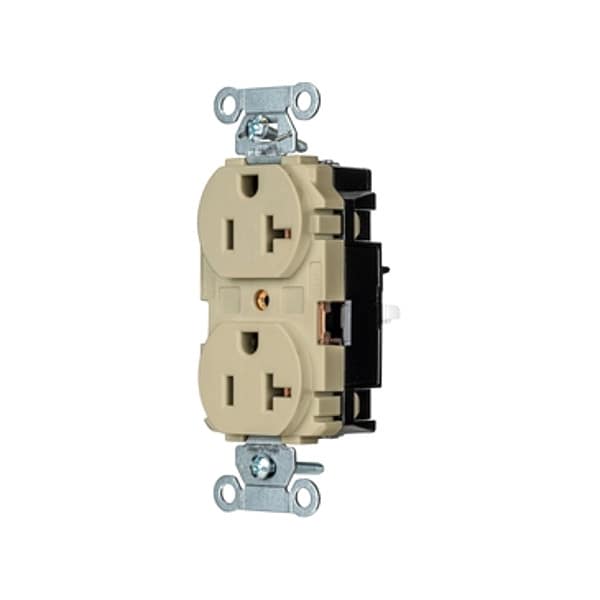

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded BR20STI - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # BR20STI

  • Zoro # G910105441

product price: $6.14
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20STI
Zoro #
G910105441
UPC #
783585727912
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
For Location
Indoor
Housing Material
Thermoplastic
For Environment
Dry
Contact Material
Copper Alloy
Visual Indicator Lights
Power Connected
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Market
Commercial
Number of Outlets
2
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Grade
General Use
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Hub Type
Feed Through
Cover Type
No Cover
Surge Protection
No
Polarized
Yes
Shrouded
No
AFCI
No
GFCI
No
NEMA Enclosure Rating
1

Description

The HUBBELL Duplex Straight Blade Receptacle is a 20A, 125V AC device intended for use in indoor, commercial environments. It features the EdgeConnectTM screwless termination system, allowing wires to be connected by simply inserting and pressing down the plunger—no tools required. This duplex receptacle supports back-wired, push-in connections and is suitable for dry locations with a tamper-resistant design.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Connection Type: Push-in, back-wired screwless termination for faster installation

  • Current/Voltage Rating: Rated for 20A at 125V AC

  • NEMA Configuration: 5-20R duplex outlet with polarized and grounded design

  • Tamper Resistant: Includes design elements intended to reduce the likelihood of unwanted object insertion

  • Contact Material: Copper alloy contacts with triple and double wipe points

  • Circuit Tab: Easy access split circuit tab allows flexible wiring options

  • Wire Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG (3-wire)

  • Operating Temperature Range: -40°F to 167°F; suitable for dry, indoor environments

  • Mounting Hardware Included; Surface mount type with single gang configuration

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186)
