  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

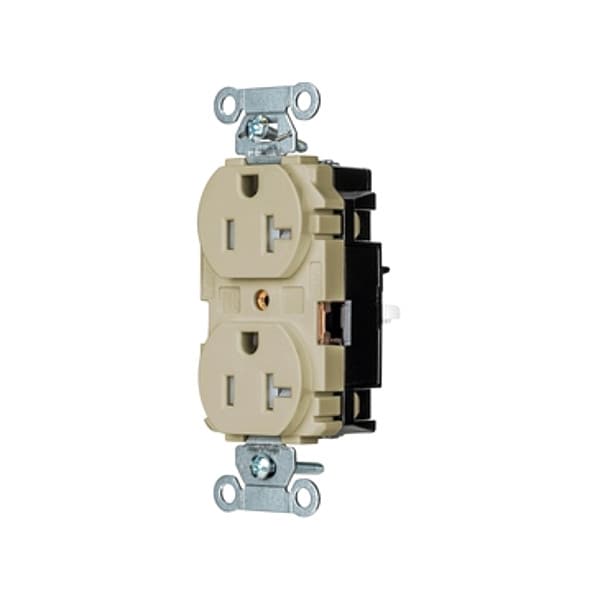

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded BR20STITR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # BR20STITR

  • Zoro # G410105415

product price: $10.13
/ea
Sold in multiples of 10 for $101.30

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20STITR
Zoro #
G410105415
UPC #
783585728018
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Face Plate Width
1.6 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Housing Material
Thermoplastic
Horsepower Rating
1 hp
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Market
Commercial
Contact Material
Copper Alloy
Visual Indicator Lights
Power Connected
For Location
Indoor
Includes Mounting Hardware
Yes
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
For Environment
Dry
Cover Type
No Cover
AFCI
No
Shrouded
No
Surge Protection
No
Polarized
Yes
NEMA Enclosure Rating
1
GFCI
No
Hub Type
Feed Through

Description

The HUBBELL EdgeConnectTM Duplex Straight Blade Receptacle is a 20 A, 125V AC commercial-grade electrical outlet rated for use in indoor, dry locations. It features a screwless push-in wire termination system that enables connection without additional tools. This duplex receptacle accommodates two outlets in a single gang configuration and is tamper resistant with polarized slots for added suitability in general use applications.


Key Features of the HUBBELL EdgeConnectTM Duplex Straight Blade Receptacle:

  • Wire Connection Type: Push-in back wiring with screwless spring termination is intended to maintain secure connections and facilitate installation

  • NEMA Configuration: 5-20R, suitable for standard North American plugs rated up to 20 A

  • Contact Material: Copper alloy contacts

  • Tamper Resistant: Tamper resistant construction

  • Grounding: Grounded; compatible with three-wire installations (2 poles, 3 wires)

  • Face Plate Dimensions: Height of 2.8 in and width of 1.6 in; overall depth is 1.4 in

  • Operating Temperature Range: Operating temperature range: -40°F to 167°F

  • Includes Mounting Hardware: Supplied with necessary hardware for surface mounting

  • Circuit Tab Feature: Split circuit tab feature

  • Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186)
