  6. Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Key Guide

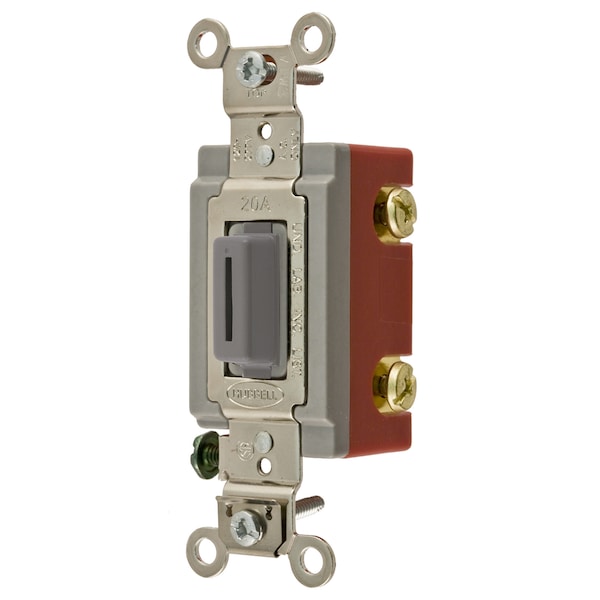

Hubbell Wiring Device-Kellems Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Key Guide HBL1221LG - main

Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Key Guide

  • Mfr # HBL1221LG

  • Zoro # G400701931

product price:  $44.71
/ea

Key Features

Color
Gray
Length
4.06 in
Height
1.13 in
Width
1.31 in
Type
Locking
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1221LG
Zoro #
G400701931
UPC #
783585188577
Country of Origin
China

Dimensions

Length
4.06 in
Height
1.13 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.13 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Gray
Type
Locking
Style
Single Pole
Application
Back and Side Wired
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Ground Screw
Brass (Green)
Key Guide
Metallic, Gray
Contacts
Silver Alloy
Carton Quantity
10
Max. Working Voltage
277V AC
Series
Extra Heavy Duty
Voltage Rating Description
120-277 VAC
Current / Amperage Rating
20 A
Current Rating
20 A
Base Material
Thermoset, Red
Temperature Rise - Max.
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Terminal Screws
Brass
Temp. Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Temperature Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Connectivity
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Voltage Rating
120-277 VAC
Max. Continuous Current
20A
Top Material
Thermoset
Amperage
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, LockingIndustrial Grade, Toggle Switches, General Purpose AC, Locking SinglePole, 20A 120/277V AC, Back and Side Wired, Gray Key Guide, Packed withKey
