Shop HUBBELL WIRING DEVICE-KELLEMS

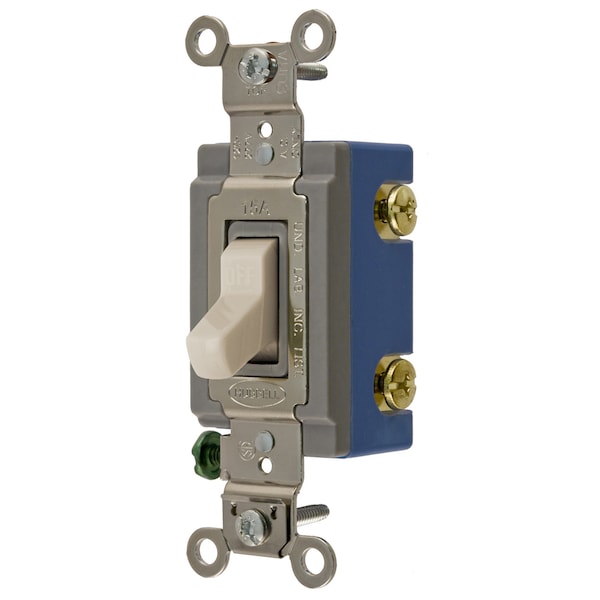

Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired Toggle

  • Mfr # HBL1201LA

  • Zoro # G600701465

product price:
$
20.29
/ea

Key Features

Color
Light Almond
Length
4.06 in
Height
1.87 in
Type
Toggle
Style
Single Pole
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1201LA
Zoro #
G600701465
UPC #
783585189031
Country of Origin
China

Dimensions

Length
4.06 in
Height
1.87 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Light Almond
Type
Toggle
Style
Single Pole
UPC
783585000000
Amperage
15 A
Temp. Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Series
Extra Heavy Duty
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current Rating
15 A
Carton Quantity
10
Voltage Rating
120-277 VAC
Connectivity
Back and Side Wired
Toggle Color
Light Almond
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Base Material
Thermoset, Blue
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Top Material
Thermoset
Contacts
Silver Alloy
Terminal Screws
Brass
Toggle Material
Nylon
Flammability
UL 94V-2
Ground Screw
Brass (Green)
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
15A
Current / Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, SinglePole, 15A 120/277V AC, Back and Side Wired, Light Almond
