Hubbell Wiring Device-Kellems

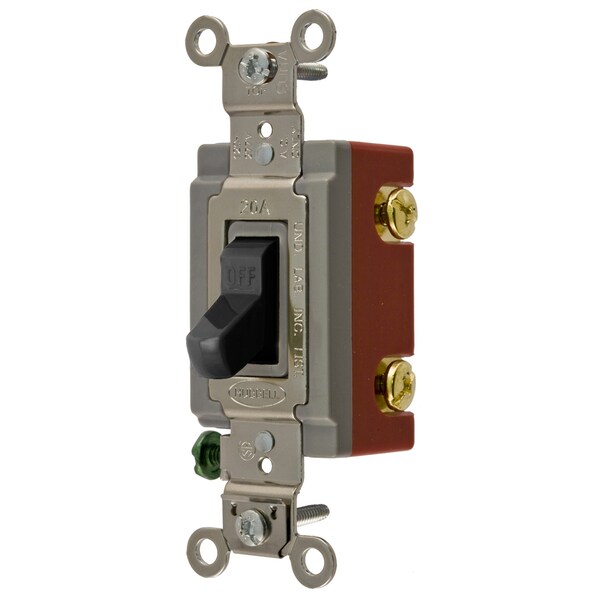

Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Toggle

original price: $30.76
9% off
new price: $27.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Switch Type Single Pole
  • Color Black
  • Length 4.06 in
  • Voltage 120/277V AC
  • Type Toggle
See all product information

Product Information

Dimensions

Length 4.06 in
Width 1.31 in
Height 1.87 in
Dimensions 4.06 in x 1.31 in x 1.87 in
Wire Size #14 AWG to #10 AWG

Details

Switch Type Single Pole
Color Black
Voltage 120/277V AC
Type Toggle
Style Single Pole
Temp. Rise 30°C maximum at rated current
Number Of Poles Single Pole
Connectivity Back and Side Wired
Carton Quantity 10
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Series Extra Heavy Duty
Application Back and Side Wired
Voltage Rating 120-277 VAC
Amperage 20 A
Current Rating 20 A
Max. Continuous Current 20A
Max. Working Voltage 277V AC
Operating Temperatures Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions 2
Toggle Color Black
Temperature Rise 30°C maximum at rated current
Dielectric Voltage Withstands 1500V AC minimum for 1 minute
Product Type Toggle-switches
Listing and Certifications Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Flammability UL 94V-2
Overload Minimum 4.8 times rated current for 100 cycles
Switch Grade Industrial
Wiring Style Back and Side Wired
Terminal Accommodations #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Voltage Rating Description 120-277 VAC
Temperature Rise - Max. 30°C maximum at rated current
Amperage Rating 20 A
Industry Standard(s) UL Listed
Performance Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating 20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Black
