  6. Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Toggle

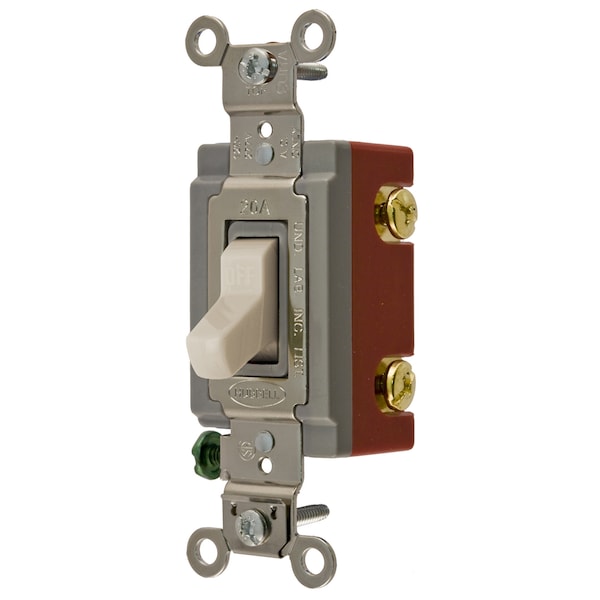

Hubbell Wiring Device-Kellems Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Toggle HBL1221LA - main

Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Toggle

  • Mfr # HBL1221LA

  • Zoro # G800701937

product price:  $30.79
/ea
Sold in multiples of 10 for $307.90

Key Features

Color
Light Almond
Width
1.31 in
Height
1.87 in
Type
Toggle
Length
4.06 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1221LA
Zoro #
G800701937
UPC #
783585189086
Country of Origin
China

Dimensions

Width
1.31 in
Height
1.87 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Color
Light Almond
Type
Toggle
Style
Single Pole
Current Rating
20 A
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Number Of Poles
Single Pole
Application
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Carton Quantity
10
Amperage
20 A
Voltage Rating
120-277 VAC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Light Almond
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Max. Continuous Current
20A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Material
Nylon
Top Material
Thermoset
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Ground Screw
Brass (Green)
Base Material
Thermoset, Red
Terminal Screws
Brass
Overload
Minimum 4.8 times rated current for 100 cycles
Contacts
Silver Alloy
Voltage Rating Description
120-277 VAC
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, SinglePole, 20A 120/277V AC, Back and Side Wired, Light Almond
