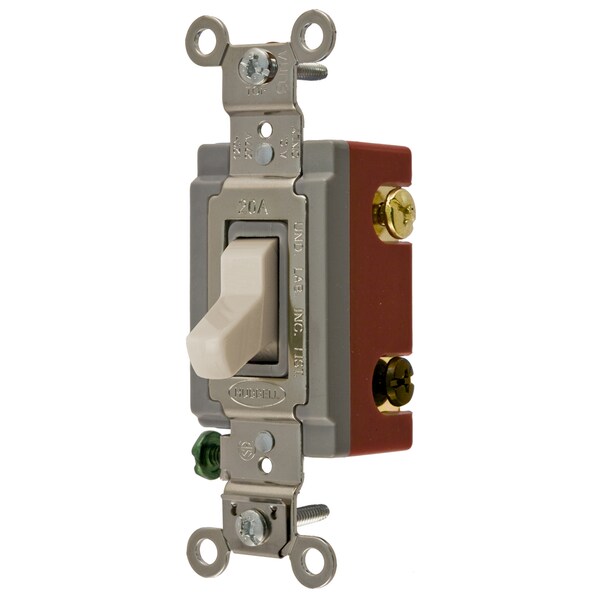

Hubbell Wiring Device-Kellems Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired Toggle HBL1223LA - main

Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired Toggle

  • Mfr # HBL1223LA

  • Zoro # G100701361

product price:  $33.59
/ea

Key Features

Color
Light Almond
Width
1.31 in
Length
4.06 in
Type
Toggle
Style
Three Way
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1223LA
Zoro #
G100701361
UPC #
783585189130
Country of Origin
China

Dimensions

Width
1.31 in
Length
4.06 in
Height
1.87 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Color
Light Almond
Type
Toggle
Style
Three Way
Number Of Poles
Single Pole
Carton Quantity
10
Application
Back and Side Wired
Amperage
20 A
Action
SPDT
Voltage Rating
120-277 VAC
Connectivity
Back and Side Wired
Series
Extra Heavy Duty
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temp. Rise
30°C maximum at rated current
Current Rating
20 A
Terminal Screws
Brass
Temperature Rise
30°C maximum at rated current
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Toggle Material
Nylon
Overload
Minimum 4.8 times rated current for 100 cycles
Ground Screw
Brass (Green)
Max. Continuous Current
20A
Contacts
Silver Alloy
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Base Material
Thermoset, Red
Toggle Color
Light Almond
Top Material
Thermoset
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Industry Standard(s)
UL Listed
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Light Almond
