  11. Flanged Locking Inlet, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

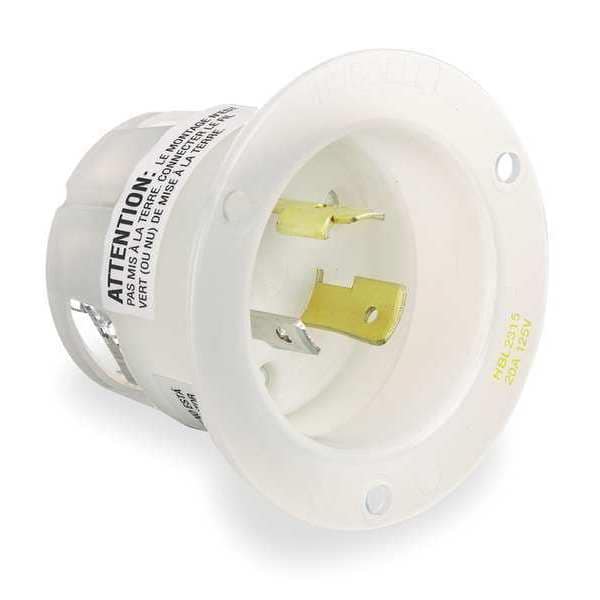

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White HBL2315 - main

Flanged Locking Inlet, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2315

  • Zoro # G0706334

product price: $28.01
/ea

Key Features

Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2315
Zoro #
G0706334
UPC #
783585037783
Country of Origin
United States

Dimensions

Flange Diameter
2.88 in
Overall Depth
2.09 in
Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Face Plate Width
0.07 in
Face Diameter
2.04 in
Wire Size
#12 AWG
Length
2.88 in
Dimensions
2.88 in x 2.88 in x 2.09 in
Height
2.09 in
Width
2.88 in

Details

Item
Locking Plug
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP44
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Material
Thermoplastic Elastomer
Boot Code
E
Wiring Style
Standard
Special Features
With Cover
Grade
General Use
Mounting Type
Flush Mount
NEMA Plug Configuration
L5-20P
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
For Location
Indoor
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Housing Material
Nylon
Connection Orientation
Straight
Includes
Mounting Screws
Minimum Operating Temperature
-40 Degrees F
Number of Blades
3
Market
Industrial
Blade Material
Brass
Flange Material
Steel
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Cord Range
0.360"-0.930" (9-24)
Material - Mounting Hardware
Screw Mounting
Amperage Rating
20 A
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty Industrial
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
NEMA Rating
12, 4, 4X
Amps
20
NEMA Configuration
L5-20
NEMA Receptacle Configuration
L5-20P

Description

The HUBBELL 20A Flanged Twist-Lock Inlet (L5-20P WT) is a flanged locking inlet suitable for use in industrial environments requiring robust performance. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 20 amps at 125V AC. The device is constructed from impact-resistant thermoplastic materials with a nylon housing and steel flange, intended for use in indoor dry locations. Backwired terminations feature backwired screw terminals compatible with slotted, Phillips, and Robertson drivers.


Key Features of the HUBBELL - 20A Flanged Twist-Lock Inlet:

  • Amperage/Voltage: Rated for 20 A, 125V AC single phase

  • NEMA Configuration: L5-20P plug pattern; twist-lock design

  • Material Construction: Thermoplastic elastomer body, nylon housing, steel flange

  • Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire; backwired screw terminals support slotted, Phillips, and Robertson drivers

  • Mounting Type: Flush mount with included mounting screws

  • Environmental Suitability: Intended for indoor dry use; IP44 ingress rating

  • Performance Ratings: Dielectric voltage: 2,000V minimum; maximum continuous operating temperature: 75°C; minimum operating temperature: -40°C (no impact)

  • Certifications & Standards: Listed to UL 498; certified to CSA C22.2 No.42 and Federal Specification W-C-596
