  11. Flanged Locking Inlet, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, White

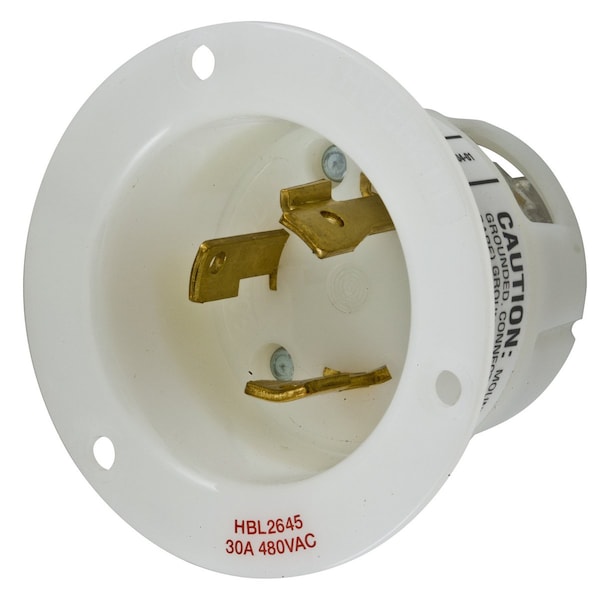

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, White HBL2645 - main

Flanged Locking Inlet, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, White

  • Mfr # HBL2645

  • Zoro # G600701427

product price: $54.35
/ea

Key Features

Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2645
Zoro #
G600701427
UPC #
783585039022
Country of Origin
United States

Dimensions

Wire Size
#10 AWG
Height
2.09 in
Width
2.88 in
Dimensions
2.88 in x 2.88 in x 2.09 in
Length
2.88 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Cover Type
No Cover
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Flange Material
Natural White Nylon
Material
Nickel-plated Brass Round head screws
Wiring Style
Standard
Special Features
Molded In or Stamped On
Application
Extra Heavy Duty Industrial
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Dielectric Strength
Withstands 2,000V minimum
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Amperage Rating
30 A
NEMA Receptacle Configuration
L8-30P

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 30A 480V, 2-Pole 3-Wire Grounding, L8-30P, ScrewTerminal, White
