  11. Flanged Locking Inlet, 30 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

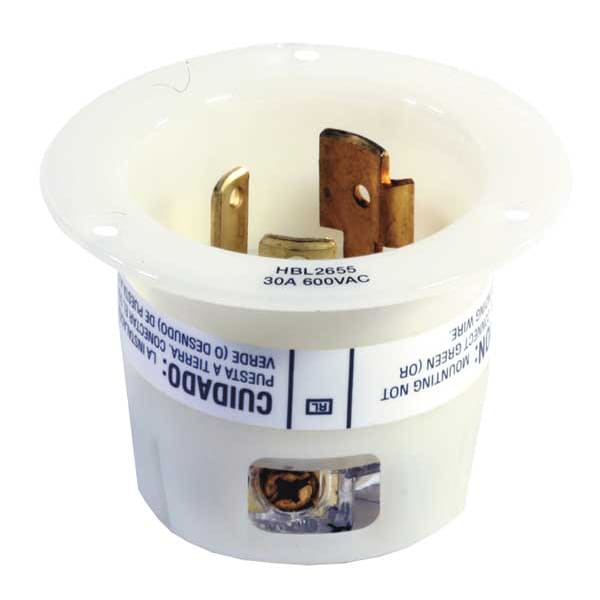

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White HBL2655 - main

Flanged Locking Inlet, 30 A, 600V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2655

  • Zoro # G2584970

product price: $54.36
/ea

Key Features

Current Rating
30 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2655
Zoro #
G2584970
UPC #
783585039060
Country of Origin
United States

Dimensions

Flange Diameter
2.88 in
Maximum Wire Size
8 AWG
Face Plate Width
0.07 in
Face Diameter
2.04 in
Minimum Wire Size
16 AWG
Overall Depth
2.09 in
Wire Size
#10 AWG
Dimensions
2.88 in x 2.88 in x 2.09 in
Height
2.09 in
Length
2.88 in
Width
2.88 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Cover
Grade
General Use
Material
Nylon
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Includes
Mounting Screws
Includes Mounting Hardware
Yes
Number of Blades
3
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Flange Material
Nylon
Connection Orientation
Straight
For Location
Indoor
NEMA Plug Configuration
L9-30P
For Environment
Dry
Housing Material
Nylon
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Screw Mounting
Amperage Rating
30 A
Insulation
Insulated Body
Application
Extra Heavy Duty Industrial
Amps
30
NEMA Configuration
L9-30
NEMA Rating
12, 4X
NEMA Receptacle Configuration
L9-30P

Description

Flanged Locking Inlet, Current Rating 30 A, Flange Material Nylon, Housing Color White, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L9-30P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Moisture Resistant, Voltage Rating 600V AC, Wiring Style Standard, Face Diameter 2.04 in, Flange Diameter 2.88 in, Flange Type Flanged, Grounding Grounded, Housing Material Nylon, Includes Mounting Hardware Yes, Maximum Wire Size 8 AWG
