  11. Flanged Locking Inlet, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals
This item is Discontinued.

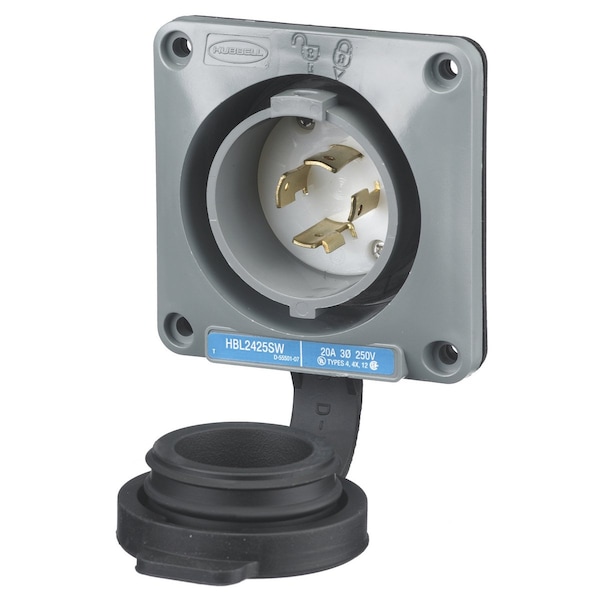

Hubbell Wiring Device-Kellems Flanged Locking Inlet, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals HBL2425SW

Flanged Locking Inlet, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals (Discontinued)

  • Mfr # HBL2425SW
  • Zoro # G000702550
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2425SW
Zoro #
G000702550
UPC #
783585231402
Country of Origin
United States

Dimensions

Cord Size
16 to 8 AWG

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Closure Cap
IP Rating
IP66
NEMA Enclosure Rating
12, 4, 4X
Standards
FED SPEC UL/CSA, UL 498
Resistance Properties
Watertight
Flange Type
Flanged
Contact Material
Brass
Retainer Material
Clear Polycarbonate
Flammability
UL 94 V0
Weight
0.75 lb
Dielectric Strength
2000V
Housing Material
Gray Valox
Screw Material
Stainless Steel

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-WireGrounding, L15-20P, Screw Terminal, Gray
