  6. Flanged Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Gray

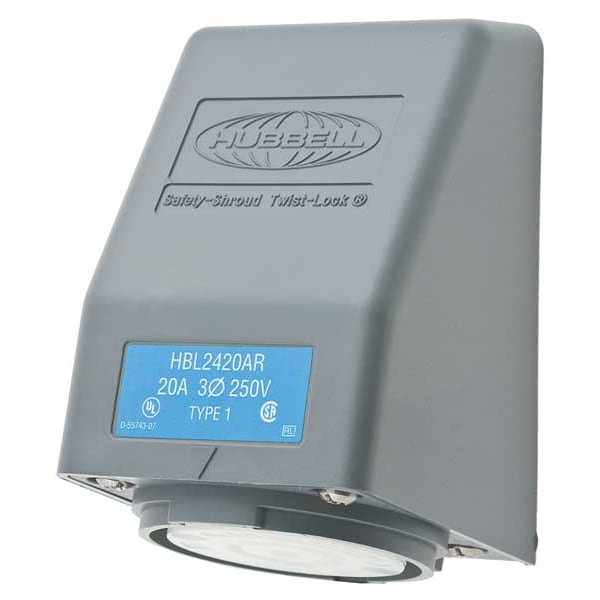

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Gray HBL2420AR - main

Flanged Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Gray

  • Mfr # HBL2420AR

  • Zoro # G2988623

product price:  $52.85
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2420AR
Zoro #
G2988623
UPC #
783585234489
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#12AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
NEMA Enclosure Rating
12, 4, 4X
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Flanged
Special Features
Corrosion resistant
Grade
Industrial
Material
Steel/Rynite
Mounting Type
Flush Mount
Wiring Style
Standard
Contact Material
Brass
For Environment
Dry
AFCI
No
Flange Shape
Rectangular
Horsepower Rating
3 hp
Polarized
Yes
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Housing Material
Valox
Market
Industrial
Flange Material
Gray Valox 357U
Lock Type
Twist-lock
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Spring Material
.031" Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
20

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
