  11. Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

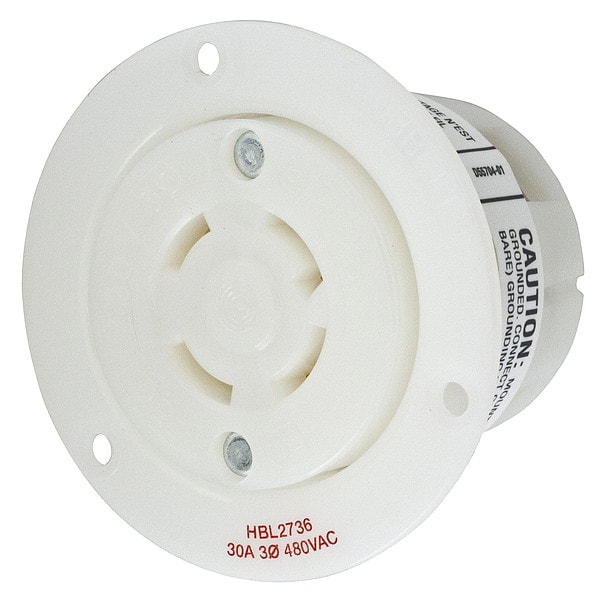

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White HBL2736 - main

Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL2736

  • Zoro # G0458692

product price: $74.95
/ea

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2736
Zoro #
G0458692
UPC #
783585039367
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#10 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Height
2.27 in
Width
3.06 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Cover
Material
Nylon
Grade
Industrial
Market
Industrial
Flange Shape
Round
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
For Environment
Dry
Polarized
Yes
Housing Material
Nylon
Includes
Mounting Screws
For Location
Indoor
Includes Mounting Hardware
Yes
Connection Orientation
Straight
AFCI
No
Number of Gangs
1
Horsepower Rating
10 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flange Material
Natural White Nylon
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Spring Material
Brass
Amperage Rating
30 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Material - Mounting Hardware
Screw Mounting
Amps
30

Description

The HUBBELL 30A Flanged Twist-Lock Receptacle is a locking receptacle rated for use in indoor, dry locations. This three-pole, four-wire device supports up to 30 amps at 480V AC and features a twist-lock mechanism for connection with compatible plugs. The receptacle is constructed from impact-resistant nylon and includes a round flange for flush mounting.


Key Features of the HUBBELL 30A Flanged Twist-Lock Receptacle:

  • NEMA Configuration: L16-30R, rated for 3-phase, 4-wire applications at 480V AC.

  • Material: Nylon housing and natural white nylon flange; suitable for use in industrial settings.

  • Mounting Type: Flush mount design with included mounting screws; round flanged shape.

  • Terminals: Backwired screw terminals accept #8–#16 AWG solid or stranded copper wire; accepts slotted, Phillips, and Robertson drivers.

  • Performance Ratings: Rated dielectric voltage: minimum 2,000V; maximum continuous operating temperature: 75°C (167°F); minimum operating temperature: -40°C (-40°F) without impact.

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596; listed to UL 498.

  • Ingress Protection: Rated IP20 for indoor use in dry environments unless additional protection is provided.
