  11. Flanged Locking Receptacle, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White

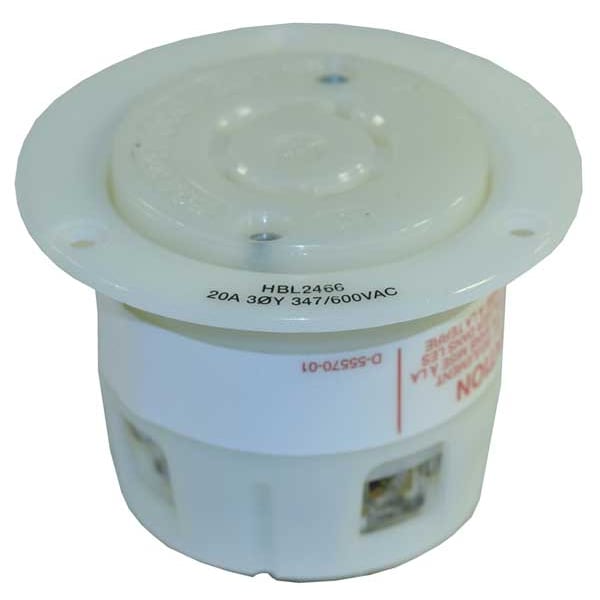

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White HBL2466 - main

Flanged Locking Receptacle, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2466

  • Zoro # G2584998

product price: $63.29
/ea

Key Features

NEMA Receptacle Configuration
L20-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2466
Zoro #
G2584998
UPC #
783585038469
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#12 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Width
3.06 in
Length
3.06 in
Height
2.27 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L20-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Grade
Industrial
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Cover
Material
Thermoset
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Screws
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Nylon
Polarized
Yes
For Environment
Dry
For Location
Indoor
Includes Mounting Hardware
Yes
Flange Shape
Round
AFCI
No
Number of Gangs
1
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Spring Material
Brass
Lock Type
Twist-lock
Flange Material
Natural White Nylon
Terminal Designations
Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
Dielectric Strength
Withstands 2,000V minimum
Application
Insulgrip
Amps
20

Description

Flanged Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Round, Flange Type Flanged, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L20-20R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover
