Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Gray

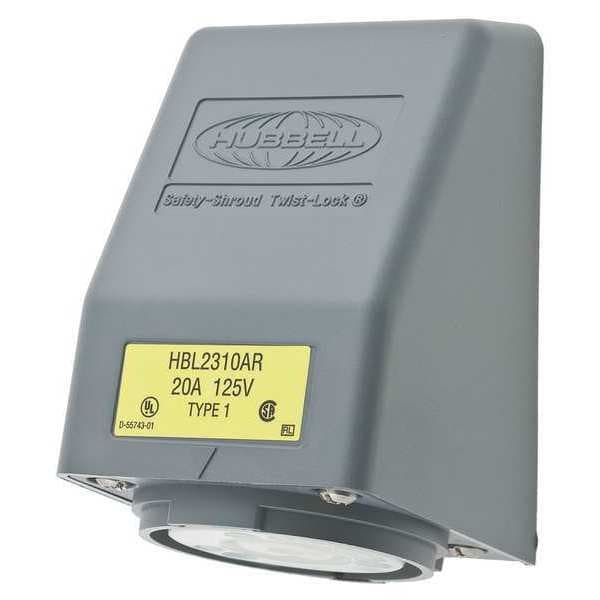

The HUBBELL 20A Angle Twist-Lock Receptacle (L5-20R) is a flanged locking receptacle intended for use in dry, indoor locations. It features a twist-lock mechanism and accepts both shrouded and standard NEMA locking plugs, compatible with electrical equipment rated at 125V AC and up to 20 amps. The device includes alignment arrows with lock/unlock symbols to assist with engagement verification, and its catalog number along with color-coded voltage rating remain visible during operation.

Key Features of the HUBBELL 20A Angle Twist-Lock Receptacle:

• NEMA Configuration: L5-20R; 2-pole, 3-wire grounded design


• Current/Voltage Rating: Rated for 20 A at 125V AC single phase


• Material Construction: Engineered thermoplastic Valox housing and flange; nylon components; brass contacts and springs


• Resistance Properties: Construction incorporates materials identified as corrosion resistant and impact resistant; suitable for specified application ratings


• Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)


• Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals


• Mounting Type: Flush mount with rectangular flanged shape


• Horsepower Rating: Rated up to 1 hp


• Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
