  11. Flanged Locking Receptacle, ML-3R, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

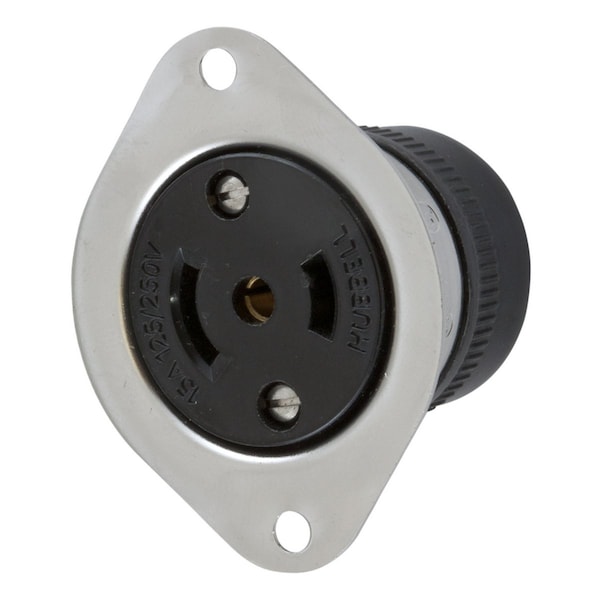

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, ML-3R, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black HBL7489 - main

Flanged Locking Receptacle, ML-3R, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL7489

  • Zoro # G300701406

product price: $38.95
/ea

Key Features

NEMA Receptacle Configuration
ML-3R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7489
Zoro #
G300701406
UPC #
783585237480
Country of Origin
United States

Dimensions

Wire Size
#18 AWG - #14 AWG solid or stranded copper wire only.
Height
1.25 in
Width
1.62 in
Length
2.06 in
Dimensions
2.06 in x 1.62 in x 1.25 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
ML-3R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Cover Type
No Cover
IP Rating
IP20
Standards
Certified for current interrupting at full rated current, UL
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Flange Material
.025" Stainless Steel
Special Features
Molded In or Stamped On
Wiring Style
Standard
Material
Nickel-plated Brass Round head screws
Application
Heavy Duty Industrial
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Spring Material
.032" (.8) Bronze
Material - Mounting Hardware
Screw Mounting
Amperage Rating
15 A
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Flanged Receptacle, 15A 125/250V, 3-Pole 3-Wire NonGrounding, ML-3R, Screw Terminal, Steel
