  6. Flanged Straight Blade Inlet, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

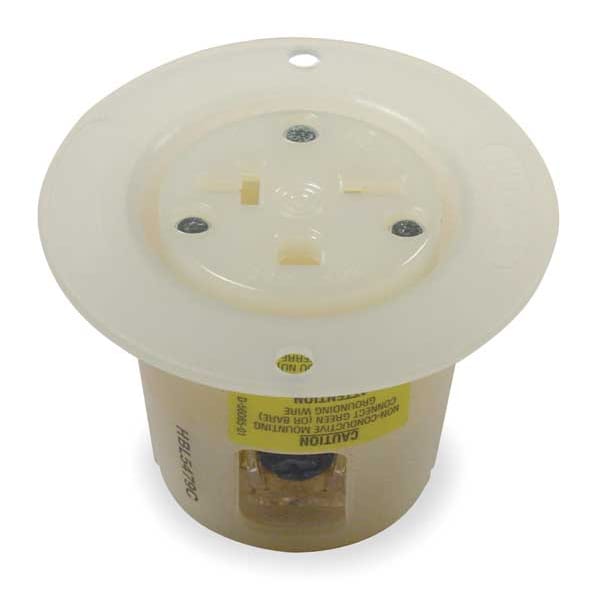

Hubbell Wiring Device-Kellems Flanged Straight Blade Inlet, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5479C - main

Flanged Straight Blade Inlet, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5479C

  • Zoro # G2451416

product price:  $39.49
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5479C
Zoro #
G2451416
UPC #
783585175058
Country of Origin
United States

Dimensions

Height
2.56 in
Width
2.56 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Flange Diameter
2.6 in
Flange Height
1.7 in
Overall Depth
2.6 in
Mount Hole Center-to-Center Width
2.2 in
Display Size
Standard Sized Product
Dimensions
1.72 in x 2.56 in x 2.56 in
Length
1.72 in
Wire Size
#18 AWG to #10 AWG

Details

Item
Flanged Straight Blade Inlet
Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Flanged
Wiring Method - Plugs and Receptacles
Back
Power Indicator
No
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
Application Environment
Industrial
Voltage
250VAC
Surge Suppression
No
Weather Resistant
No
Material
Nylon/Polycarbonate
Special Features
#8-32 Multiple Drive Terminal Screws
HP
2 hp
Sub-Category
Flanged Receptacles
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Panel
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
No
Mounting Type
Panel
Outlet Type
Single
Type
Miniature
Connection Orientation
Straight
NEMA Enclosure Rating
1
Flange Shape
Round
Horsepower Rating
2 hp
Cover Type
No Cover
Market
Commercial, Industrial
Shrouded
No
AFCI
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Flange Material
Nylon
UL 94 Flammability Rating
V-2
For Location
Indoor
GFCI
No
Includes
Mounting Hardware, Weatherproof Lift Cover
Includes Mounting Hardware
Yes
Housing Material
Nylon
Surge Protection
No
Contact Material
Brass
Power Contacts Material
.040" (1.0) Brass
Standard
NEMA
Top Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material
#8-32 Brass, Multiple Drive
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Rating
20A, 250V
Receptacle Grade
Heavy Duty Spec Grade
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Face Style
Finder Groove
Device Color
White
Base Material
Polycarbonate
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
2
Flange Style
Standard Non-Metallic
Terminal Accommodation
#18-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V2.
Mounting Screw Material
Brass-Nickel Plated
Current Interrupting
Certified for current interrupting at full rated current
Wattage
5000 W
Application
Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Series
Extra Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
6-20R
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
2
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws
• Mounting screws included
