This item is Discontinued.

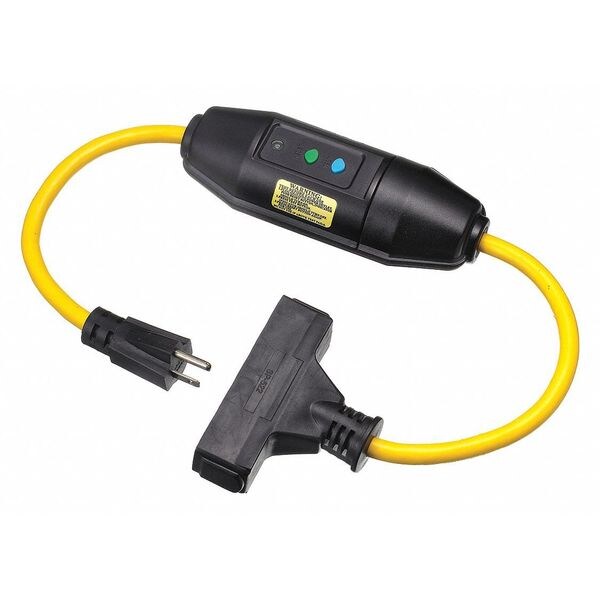

Hubbell Wiring Device-Kellems GFCI Line Cord, 15A, Triple Tap GFPIL15125TRIM

GFCI Line Cord, 15A, Triple Tap (Discontinued)

  • Mfr # GFPIL15125TRIM
  • Zoro # G0800217
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFPIL15125TRIM
Zoro #
G0800217
UPC #
783585692098
Country of Origin
China

Dimensions

Cord Length
2 ft
Portable GFCI Receptacle Cord Length
1 ft.
Portable GFCI Plug Cord Length
19"
Plug Cord Length
19 in
Receptacle Cord Length
1 ft
Outside Diameter
0.245
Conductor Size
#14 AWG

Details

Item
Straight Blade
Amps
15
Voltage
120V AC
Plug Configuration
NEMA 5-15P
Max. Amps
15 A
Voltage Rating
120 VAC
Enclosure Rating
IP20
Number of Poles
2
Number of Wires
3
Color
Black
NEMA Plug Configuration
5-15p
Self-Testing
No
Number of Conductors
3
Type
Line Cord
Line Cord Type
Industrial
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Number of Strands
Multi
Current Rating
15 A
Insulating Material
Elastomer
Material - Jacket
PVC
Conductor Type
Copper
Device Style
Straight Blade
Current / Amperage Rating
15 A
Connectivity
Plug-In
Amperage Rating
15 A
Voltage Rating Description
120 VAC
Construction
Fabricated
Material - Insulation
Elastomer
Trip Level
4-6 mA
Frequency
60Hz
Number Of Conductors
3
Weight
1.5 lb
Standard
UL Listed
Industry Standard(s)
UL Listed
Style
Manual Set
Strands
Multi
Temperature Rating
-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Amperage
15 A
Jacket Material
PVC
Cord Ends
Triple Tap
Set Style
Manual
Brand
Hubbell Wiring Device-Kellems
Application
Line Cord with GFCI Plug and Tri-Tap Female
Trip Time
0.025 seconds
Voltage Range
120V AC +10% -15%
Series
Heavy Duty
GFCI Product Type
line-cords
Item Type
Straight Blade
UPC
783586000000
Temp. Rating
-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
OEM Brand Name
Hubbell Wiring Device-Kellems
Max Humidity
0.95

Description

GFCI Line Cord, Cord Length 2 ft, Max. Amps 15 A, Plug Configuration NEMA 5-15P, Enclosure Rating IP20, Voltage 120V AC, Number of Conductors 3
