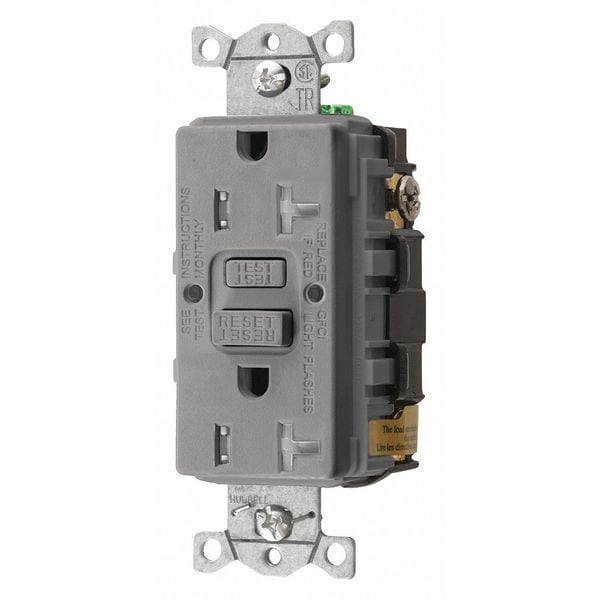

Hubbell Wiring Device-Kellems GFCI Rceptcle, Commer., Gr, 20A, 1 HP GFRTR20GRY - main

GFCI Rceptcle, Commer., Gr, 20A, 1 HP

  • Mfr # GFRTR20GRY

  • Zoro # G4885058

product price: $29.36
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTR20GRY
Zoro #
G4885058
UPC #
883778124235
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Wiring Method - Plugs and Receptacles
Back and Side
Amps
20A
Outlet Type - Plugs and Receptacles
Decorator Duplex
Power Indicator
Yes
Reset Type
Automatic
HP
1 hp
Voltage - Plugs and Receptacles
125V AC
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
No
Self-Testing
Yes
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Gray
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Amps - Plugs and Receptacles
20 A
Item - Plugs and Receptacles
Receptacle
Outlet Type
Decorator
Application Environment
Commercial
Voltage
125VAC
Tamper Resistant
Yes
Color
Gray
Special Features
Ground Fault Indicator
NEMA Configuration
5-20
Surge Suppression
No
Wiring Method
Back, Side
Amps - Plugs and Receptacles
20
AFCI
No
Contact Material
Brass
Features
Tamper Resistant
Resistance Properties
Tamper Resistant
Includes Mounting Hardware
Yes
Mount Type
Flush
Shrouded
No
Wire Connection Type
Screw Terminals
Number of Gangs
1
Receptacle Type
Duplex
Self Testing
Yes
Flange Type
Non-Flanged
Voltage Rating
125V AC
Horsepower Rating
1 hp
Includes
Mounting Hardware
Surge Protection
No
Market
Commercial
Grade
General Use
Base
Nylon
Mounting Strap
Zinc plated steel
Face
Nylon
Mounting Screws
Zinc plated steel
Power Contacts
Brass
Description
20A, 125V, Style Line®, assembled in the USA, AUTOGUARD® self test GFCI receptacle, flush face, back and side wired, multiple drive screws
Ground Contacts
Brass

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Patented shutter design for tamper-resistant
• Compliant with NEC® 406.12 and NEC® 517-18(c)
• Patented AUTOGUARD® self test technology
• Triple wipe construction
• Alarm version provides audible notification of a trip condition
