  11. GFCI Rceptcle, Commer., Ivry, 20A, 1 HP

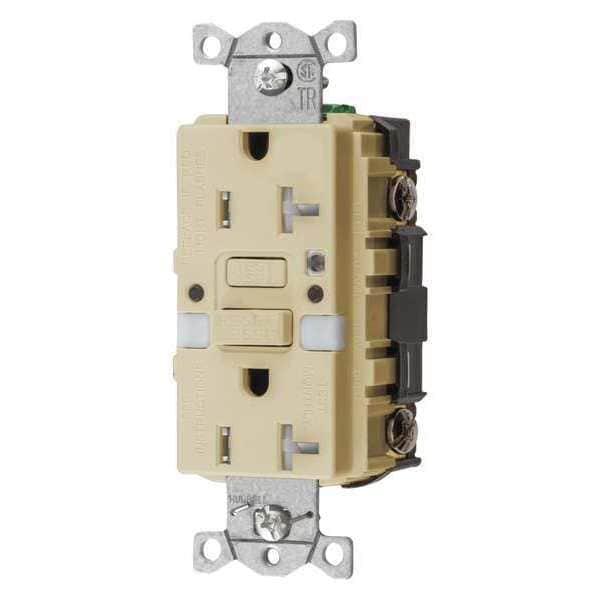

Hubbell Wiring Device-Kellems GFCI Rceptcle, Commer., Ivry, 20A, 1 HP GFTR20INL - main

GFCI Rceptcle, Commer., Ivry, 20A, 1 HP

  • Mfr # GFTR20INL

  • Zoro # G4843356

product price: $51.29
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR20INL
Zoro #
G4843356
UPC #
883778123344
Country of Origin
China

Dimensions

Overall Depth
4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Housing Material
Zytel 101
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Nightlight
Amps - Plugs and Receptacles
20 A
Power Indicator
Yes
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
Receptacle
Tamper Resistant
Yes
Amps - Plugs and Receptacles
20
Self-Testing
Yes
Amps
20A
Voltage - Plugs and Receptacles
125V AC
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Reset Type
Automatic
Color - Plugs and Receptacles
Ivory
Wiring Method
Back, Side
HP
1 hp
Weather Resistant
No
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Commercial
Voltage
125VAC
Color
Ivory
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Self Testing
Yes
Contact Material
Brass
Resistance Properties
Tamper Resistant
Grade
General Use
Number of Gangs
1
Wire Connection Type
Screw Terminals
Shrouded
No
Market
Commercial
Receptacle Type
Duplex
Includes
Mounting Hardware
Features
Night Light
Surge Protection
No
Voltage Rating
125V AC
Mount Type
Flush
Flange Type
Non-Flanged
AFCI
No
Type
Standard
Current / Amperage Rating
20 A
Amperage Rating
20 A
Voltage Rating Description
125 V
Style
Nightlight
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-20R
Series
Heavy Duty

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Patented shutter design for tamper-resistant
• Compliant with NEC® 406.12 and NEC® 517-18(c)
• Patented AUTOGUARD® self test technology
• Triple wipe construction
