  11. GFCI Rceptcle, Commer., Wht, 20A, 1 HP

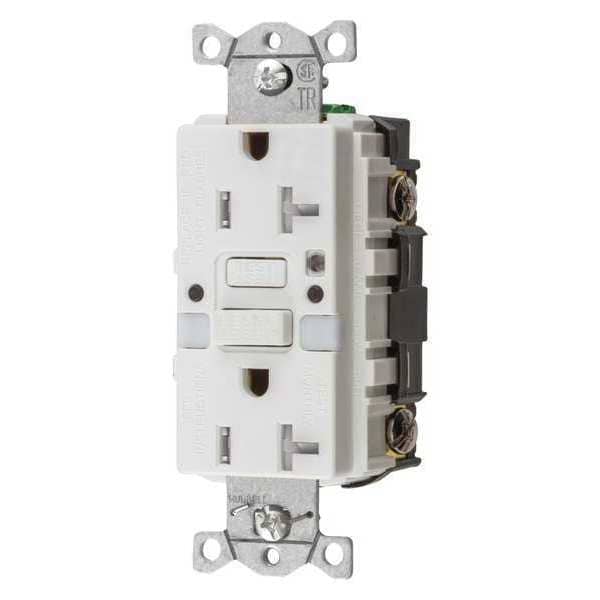

Hubbell Wiring Device-Kellems GFCI Rceptcle, Commer., Wht, 20A, 1 HP GFTR20WNL - main

GFCI Rceptcle, Commer., Wht, 20A, 1 HP

  • Mfr # GFTR20WNL

  • Zoro # G4885137

product price: $51.29
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR20WNL
Zoro #
G4885137
UPC #
883778123382
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Face Plate Width
1.8 in
Overall Depth
4 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Zytel 101
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Reset Type
Automatic
Amps - Plugs and Receptacles
20 A
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
Weather Resistant
No
Voltage
125VAC
Power Indicator
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V AC
Color - Plugs and Receptacles
White
Color
White
Amps - Plugs and Receptacles
20
Surge Suppression
No
Outlet Type
Decorator
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-20
Amps
20A
Tamper Resistant
Yes
Item - Plugs and Receptacles
Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Nightlight
Wiring Method
Back, Side
Horsepower Rating
1 hp
Grade
General Use
Contact Material
Brass
Features
Night Light
Number of Gangs
1
Includes
Mounting Hardware
Mount Type
Flush
Market
Commercial
Wire Connection Type
Screw Terminals
Flange Type
Non-Flanged
Self Testing
Yes
Voltage Rating
125V AC
Shrouded
No
Surge Protection
No
AFCI
No
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex
Includes Mounting Hardware
Yes
Type
Tamper-Resistant
Amperage Rating
15 A
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Series
Heavy Duty
Current / Amperage Rating
15 A
Nema Rating
5-15R
Style
Nightlight

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
•
