Shop HUBBELL WIRING DEVICE-KELLEMS

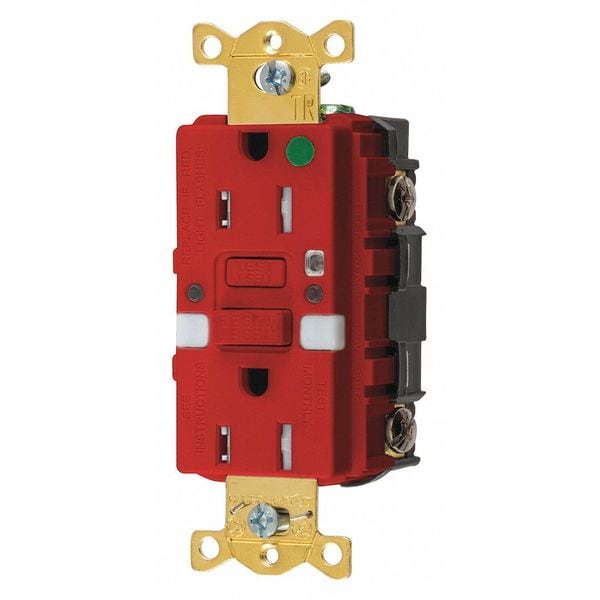

GFCI Rceptcle, Hspital, Red, 15A, 0.5 HP

  • Mfr # GFTRST82RNL

  • Zoro # G4843076

product price:
$
86.25
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GFTRST82RNL
Zoro #
G4843076
UPC #
783585486123
Country of Origin
China
Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Tamper Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
Special Features
Nightlight
Amps - Plugs and Receptacles
15
Amps - Plugs and Receptacles
15 A
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Red
HP
0.5 hp
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125VAC
Wiring Method
Back/Side
Application Environment
Heavy Use Hospital Grade
Power Indicator
Yes
Item - Plugs and Receptacles
Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Color
Red
Weather Resistant
No
Surge Suppression
No
Outlet Type
Decorator
Self-Testing
Yes
Amps
15A
Reset Type
Automatic
NEMA Configuration
5-15
Voltage - Plugs and Receptacles
125V AC
Resistance Properties
Tamper Resistant
Horsepower Rating
1/2 hp
Self Testing
Yes
Surge Protection
No
Wire Connection Type
Screw Terminals
Market
Commercial
Mount Type
Flush
Contact Material
Brass
AFCI
No
Receptacle Type
Duplex
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Shrouded
No
Grade
Hospital Grade
Features
Night Light
Number of Gangs
1
Voltage Rating
125V AC
Includes
Mounting Hardware
Type
Tamper-Resistant
Nema Rating
5-15R
Current / Amperage Rating
15 A
Style
Nightlight
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Number of Outlets
2
IP Rating
Not Rated
Hub Type
Feed Through
Number of Wall Plates Included
1

Description

The HUBBELL GFCI Receptacle is a hospital grade electrical outlet rated for use in commercial environments with ground fault circuit interruption capability. It features AUTOGUARD® self-test technology performs periodic monitoring of the receptacle’s protection functionality and is designed to disconnect power when certain internal conditions are detected. The device includes visual indicators display status information including power presence, trip condition, ground fault detection, and end-of-life state. The device is constructed so that no power is supplied to the face of the receptacle if reverse wiring is detected.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 15A and 125V AC operation

  • Hospital Grade: Intended for installation in medical facility settings

  • NEMA Configuration: 5-15R duplex decorator style with tamper-resistant design

  • Self-Testing: Performs automatic self-testing at regular intervals

  • Tamper Resistant: Tamper-resistant design

  • Night Light Feature: Integrated nightlight on device face

  • Mounting Type: Flush mount with included mounting hardware; back or side wire connection via screw terminals

  • Visual Indicators: Provides status updates for power, trip condition, ground fault, and end-of-life state directly on device face

  • Horsepower Rating: Rated up to 0.5 HP (1/2 hp)

  • Meets NEC Requirements: Designed according to applicable National Electrical Code standards
