  11. GFCI Rceptcle, Hspital, Red, 20A, 1 HP
Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Red, 20A, 1 HP GFTRST83RNL - main

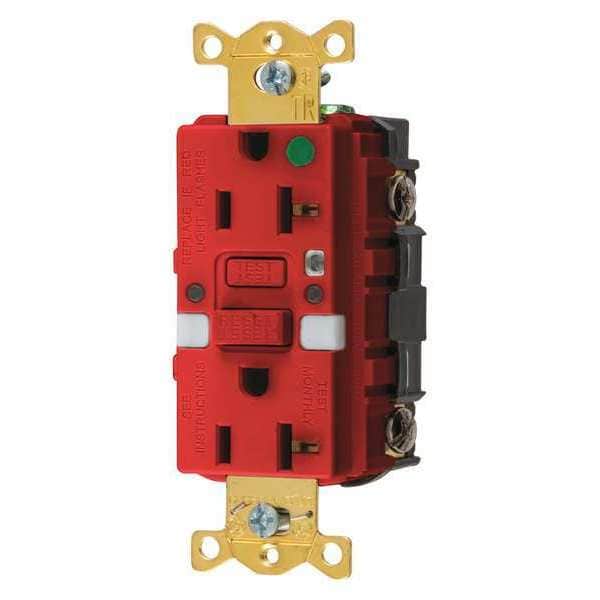

GFCI Rceptcle, Hspital, Red, 20A, 1 HP

  • Mfr # GFTRST83RNL

  • Zoro # G4843015

product price: $89.69
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTRST83RNL
Zoro #
G4843015
UPC #
783585486208
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Weather Resistant
No
Outlet Type
Decorator
Application Environment
Heavy Use Hospital Grade
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
Color - Plugs and Receptacles
Red
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Amps
20A
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Item - Plugs and Receptacles
Receptacle
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
HP
1 hp
NEMA Configuration
5-20
Self-Testing
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Color
Red
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Wiring Method
Back, Side
Special Features
Nightlight
Reset Type
Automatic
Amps - Plugs and Receptacles
20 A
Mount Type
Flush
Resistance Properties
Tamper Resistant
Contact Material
Brass
Horsepower Rating
1 hp
Receptacle Type
Duplex
Flange Type
Non-Flanged
Market
Commercial
Voltage Rating
125V AC
Shrouded
No
Surge Protection
No
Self Testing
Yes
AFCI
No
Includes Mounting Hardware
Yes
Grade
Hospital Grade
Number of Gangs
1
Features
Night Light
Wire Connection Type
Screw Terminals
Includes
Mounting Hardware
Type
Tamper-Resistant
Industry Standard(s)
Meets All NEC® Requirements
Voltage Rating Description
125 V
Style
Nightlight
Nema Rating
5-20R
Series
Hospital Grade
Current / Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
•
