  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Black

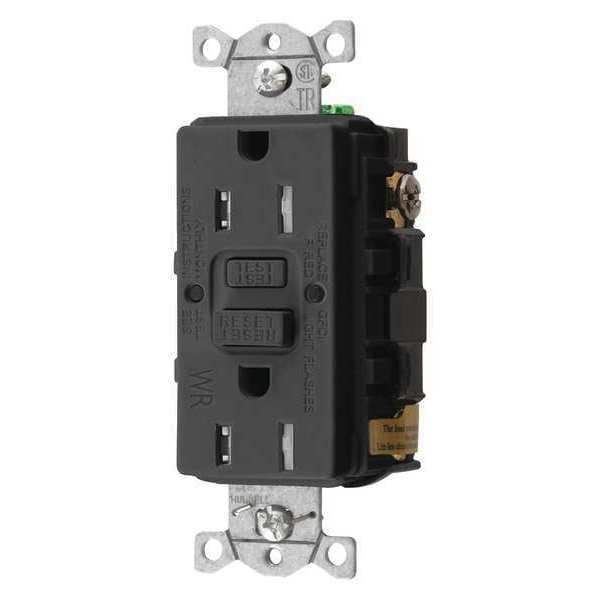

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Black GFRTW15BLK - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Black

  • Mfr # GFRTW15BLK

  • Zoro # G0087669

product price: $28.42
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW15BLK
Zoro #
G0087669
UPC #
883778122576
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Housing Material
Zytel 101
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Decorator
HP
0.5 hp
Amps - Plugs and Receptacles
15
Wiring Method
Back, Side
Reset Type
Automatic
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
15 A
NEMA Configuration
5-15
Weather Resistant - Plugs and Receptacles
Yes
Item - Plugs and Receptacles
Receptacle
Weather Resistant
Yes
Color
Black
Color - Plugs and Receptacles
Black
Amps
15A
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Voltage
125VAC
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V AC
Grade
General Use
Self Testing
Yes
Flange Type
Non-Flanged
Receptacle Type
Duplex
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Surge Protection
No
Resistance Properties
Tamper Resistant, Weather Resistant
Number of Gangs
1
Wire Connection Type
Screw Terminals
Includes
Mounting Hardware
Shrouded
No
Includes Mounting Hardware
Yes
Mount Type
Flush
Market
Commercial
Voltage Rating
125V AC
AFCI
No
Contact Material
Brass
Horsepower Rating
1/2 hp
Type
Tamper-Resistant, Weather Resistant
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-15R
Series
Heavy Duty
Amperage Rating
15 A
Current / Amperage Rating
15 A
Style
Standard
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Zytel 101, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
