  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Brown

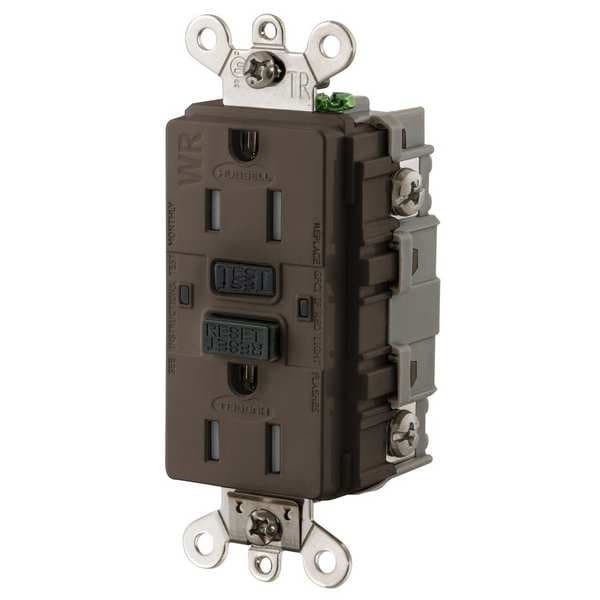

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Brown GFSG5262 - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Brown

  • Mfr # GFSG5262

  • Zoro # G5170462

product price: $123.99
/ea
Sold in multiples of 40 for $4,959.60
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSG5262
Zoro #
G5170462
UPC #
783585440897
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed
Outlet Type
Decorator
Voltage - Plugs and Receptacles
125V AC
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
NEMA Configuration
5-15
Color
Brown
Color - Plugs and Receptacles
Brown
Weather Resistant
Yes
Surge Suppression
No
Amps - Plugs and Receptacles
15
Power Indicator
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Reset Type
Automatic
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Decorator Duplex
Self-Testing
Yes
Weather Resistant - Plugs and Receptacles
Yes
Voltage
125VAC
Item - Plugs and Receptacles
Receptacle
Amps
15A
HP
0.5 hp
Amps - Plugs and Receptacles
15 A
Wiring Method
Back, Side
Special Features
Includes (1) Brown Nylon Wall Plate and (1) Stainless Steel Wall Plate
Wall Plate Material
Stainless Steel
Contact Material
Nickel-Plated Brass
Features
Self Test
AFCI
No
Market
Industrial
Wire Connection Type
Screw Terminals
Self Testing
Yes
Horsepower Rating
1/2 hp
Number of Wall Plates Included
1
Shrouded
No
Mount Type
Flush
Surge Protection
No
Number of Gangs
1
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-31 Degrees F
Grade
Federal Specification
Flange Type
Non-Flanged
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Duplex
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Hub Type
Feed Through
Voltage Rating
125V AC
UL 94 Flammability Rating
V-0
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
Receptacle Grade
Industrial Grade
Amperage
15A
Trip Level
4-6 mA
GFCI Product Type
receptacles
Receptacle Version
Self Test Tamper Resistant
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Voltage Range
120V AC +10% -15%
Trip Time
0.025 seconds
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Max Interrupting Capacity
10,000 Amps
Frequency
60Hz
Max Humidity
0.95
Amperage Range
15A/20A, 20 Amps Feed Thru

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 15 years ago...self test monitoring now required in UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, a clear visual indicator is provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Heavy duty robust construction, high impact resistant polyester housing
• Corrosion Resistant: nickel-plated face contacts, mounting strap, line/load terminals and terminal clamps, stainless steel screws
• Patented auto monitor, power denial technology
