  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Gray

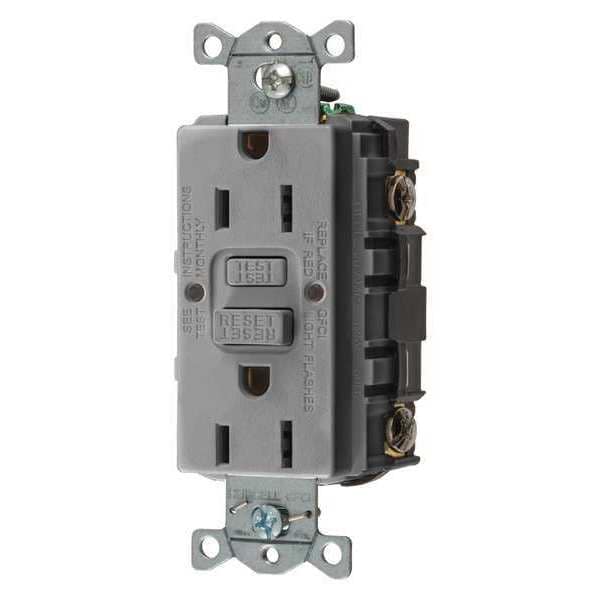

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Gray GFR15GRY - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Gray

  • Mfr # GFR15GRY

  • Zoro # G0088131

product price: $24.91
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR15GRY
Zoro #
G0088131
UPC #
883778122026
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon (Face)
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Item - Plugs and Receptacles
Receptacle
NEMA Configuration
5-15
Tamper Resistant
No
Amps - Plugs and Receptacles
15
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Industrial
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Decorator
HP
0.5 hp
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Color - Plugs and Receptacles
Gray
Amps
15A
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125VAC
Amps - Plugs and Receptacles
15 A
Reset Type
Automatic
Wiring Method
Back, Side
Voltage - Plugs and Receptacles
125V AC
Color
Gray
Self-Testing
Yes
Voltage Rating
125V AC
Self Testing
Yes
Market
Commercial, Industrial
AFCI
No
Flange Type
Non-Flanged
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Grade
General Use
Includes
Mounting Hardware
Mount Type
Flush
Number of Gangs
1
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Contact Material
Brass
Wire Connection Type
Screw Terminals
Receptacle Type
Duplex
Surge Protection
No
Shrouded
No
Type
Standard
Nema Rating
5-15R
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Amperage Rating
15 A
Series
Heavy Duty
Style
Standard
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
