  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Red

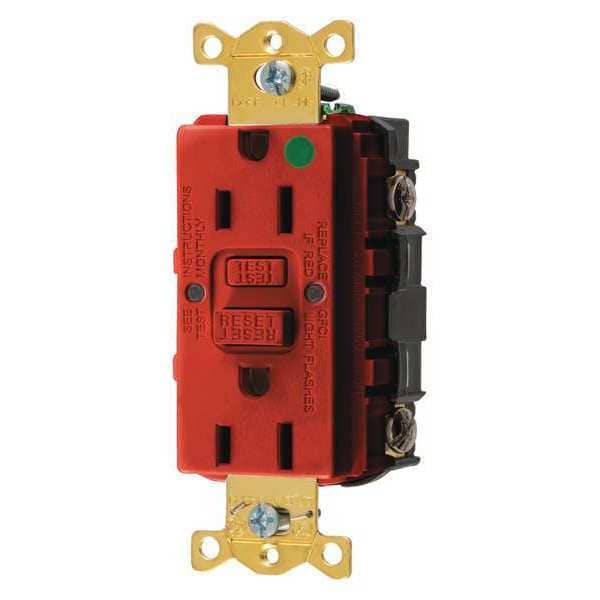

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Red GFR82R - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Red

  • Mfr # GFR82R

  • Zoro # G0087921

product price: $65.41
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR82R
Zoro #
G0087921
UPC #
783585485164
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Mounting Type - Plugs and Receptacles
Flush
Reset Type
Automatic
HP
0.5 hp
Item - Plugs and Receptacles
Receptacle
Voltage - Plugs and Receptacles
125V AC
Self-Testing
Yes
Amps
15A
Color
Red
Wiring Method
Back, Side
Amps - Plugs and Receptacles
15 A
Voltage
125VAC
Outlet Type
Decorator
Power Indicator
Yes
Surge Suppression
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-15
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
No
Weather Resistant
No
Application Environment
Heavy Use Hospital Grade
Weather Resistant - Plugs and Receptacles
No
Special Features
Ground Fault Indicator
Color - Plugs and Receptacles
Red
Horsepower Rating
1/2 hp
Contact Material
Brass
Surge Protection
No
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Grade
Hospital Grade
Mount Type
Flush
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Number of Gangs
1
Flange Type
Non-Flanged
Market
Commercial
Wire Connection Type
Screw Terminals
Self Testing
Yes
Voltage Rating
125V AC
AFCI
No
Shrouded
No
Receptacle Type
Duplex
Type
Standard
Industry Standard(s)
Meets All NEC® Requirements
Series
Hospital Grade
Nema Rating
5-15R
Style
Standard
Voltage Rating Description
125 V
Current / Amperage Rating
15 A

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
