  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Red

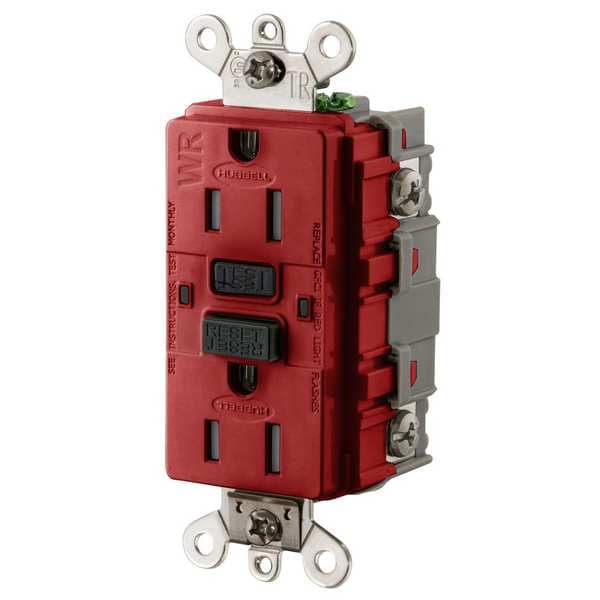

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Red GFSG5262R - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Red

  • Mfr # GFSG5262R

  • Zoro # G5170541

product price: $117.99
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSG5262R
Zoro #
G5170541
UPC #
783585440934
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.8 in
Minimum Wire Size
14 AWG

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed
NEMA Configuration
5-15
Amps
15A
Item - Plugs and Receptacles
Receptacle
Wiring Method
Back, Side
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Surge Suppression
No
Voltage - Plugs and Receptacles
125V AC
Amps - Plugs and Receptacles
15 A
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
Yes
Special Features
Includes (1) Red Nylon Wall Plate and (1) Stainless Steel Wall Plate
Weather Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Reset Type
Automatic
Tamper Resistant
Yes
Application Environment
Industrial
Power Indicator
Yes
Color - Plugs and Receptacles
Red
HP
0.5 hp
Outlet Type - Plugs and Receptacles
Decorator Duplex
Self-Testing
Yes
Amps - Plugs and Receptacles
15
Color
Red
Wire Connection Type
Screw Terminals
AFCI
No
Contact Material
Nickel-Plated Brass
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Grade
Federal Specification
Mount Type
Flush
Minimum Operating Temperature
-31 Degrees F
Receptacle Type
Duplex
Number of Wall Plates Included
1
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Wall Plate Material
Stainless Steel
Self Testing
Yes
Features
Self Test
Surge Protection
No
Hub Type
Feed Through
Market
Industrial
Flange Type
Non-Flanged
Number of Gangs
1
Shrouded
No
UL 94 Flammability Rating
V-0
Horsepower Rating
1/2 hp
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
Maximum Operating Temperature
150.8 Degrees F
Type
Tamper-Resistant/Weather-Resistant
Amperage
15A
Max Interrupting Capacity
10,000 Amps
Receptacle Version
Self Test Tamper Resistant
Voltage Range
120V AC +10% -15%
Receptacle Grade
Industrial Grade
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Max Humidity
0.95
Amperage Range
15A/20A, 20 Amps Feed Thru
Trip Level
4-6 mA
Frequency
60Hz
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Trip Time
0.025 seconds
GFCI Product Type
receptacles
Current / Amperage Rating
15 A
Series
Extra Heavy Duty

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Tamper Resistant, Weather Resistant
