  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

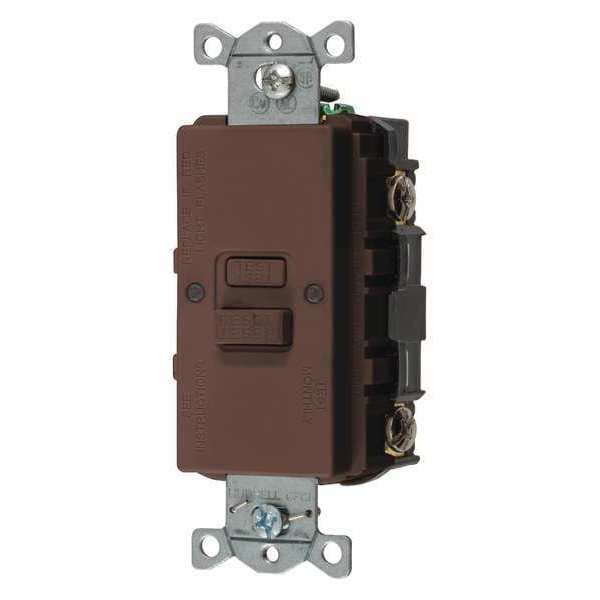

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Brown GFBFST20 - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Brown

  • Mfr # GFBFST20

  • Zoro # G0087991

product price: $28.01
/ea

Key Features

Current Rating
20 A
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
6
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFBFST20
Zoro #
G0087991
UPC #
883778122200
Country of Origin
China

Dimensions

Overall Depth
1.47 in
Overall Width
1.75 in
Mount Hole Center-to-Center Height
3.27 in

Details

Item
GFCI Receptacle
Current Rating
20 A
Housing Color
Brown
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
6
Number of Poles
2
Number of Wires
3
Standards
ADA, CSA Certified, Meets All NEC(R) Requirements, UL Listed
NEMA Configuration
None
HP
1 hp
Color - Plugs and Receptacles
Brown
Wiring Method
Back
Amps
20A
Voltage - Plugs and Receptacles
125V AC
Reset Type
Automatic
Application Environment
Commercial
Item - Plugs and Receptacles
Receptacle
Tamper Resistant
No
Amps - Plugs and Receptacles
20 A
Color
Brown
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Blank Face
Outlet Type
Blank Face
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
No Configuration
Surge Suppression
No
Self-Testing
Yes
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
Amps - Plugs and Receptacles
20
Market
Commercial
Self Testing
Yes
Features
Internal Back Wiring Clamp and Guide for Quick and Secure Termination, Patented AUTOGUARD(R) Self Test Technology, Triple Wipe Construction
Horsepower Rating
1 hp
Grade
Commercial
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
For Environment
Damp
Contact Material
Brass
Mount Type
Flush
Type
Standard
Style
Blank Face
Series
Heavy Duty
Voltage Rating Description
125 V
Amperage Rating
20 A
Current / Amperage Rating
20 A
Industry Standard(s)
Meets All NEC® Requirements

Description

The HUBBELL GFCI Receptacle is a 20A, 125VAC blank face device suitable for installation in commercial settings and damp environments. Features AUTOGUARD® self-test technology that monitors ground fault protection capability and is designed to disconnect power if certain internal conditions are detected. The unit includes visual indicators display device status and will not supply power if reverse wiring is detected.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC operation

  • Self-Testing: Performs periodic self-testing at approximately 30-second intervals using AUTOGUARD® technology

  • Mounting Type: Flush mount with mounting hardware included; mount hole center-to-center height is 3.27 in

  • Wiring Method: Back and side wiring with internal back wiring clamp

  • Contact Material/Housing: Brass contacts housed in nylon construction

  • NEMA Enclosure Rating: NEMA 6 rated enclosure suitable for damp locations (not weather resistant)

  • Reset Type: Automatic reset functionality

  • Standards Compliance: ADA compliant, CSA certified, UL listed, meets all NEC® requirements
